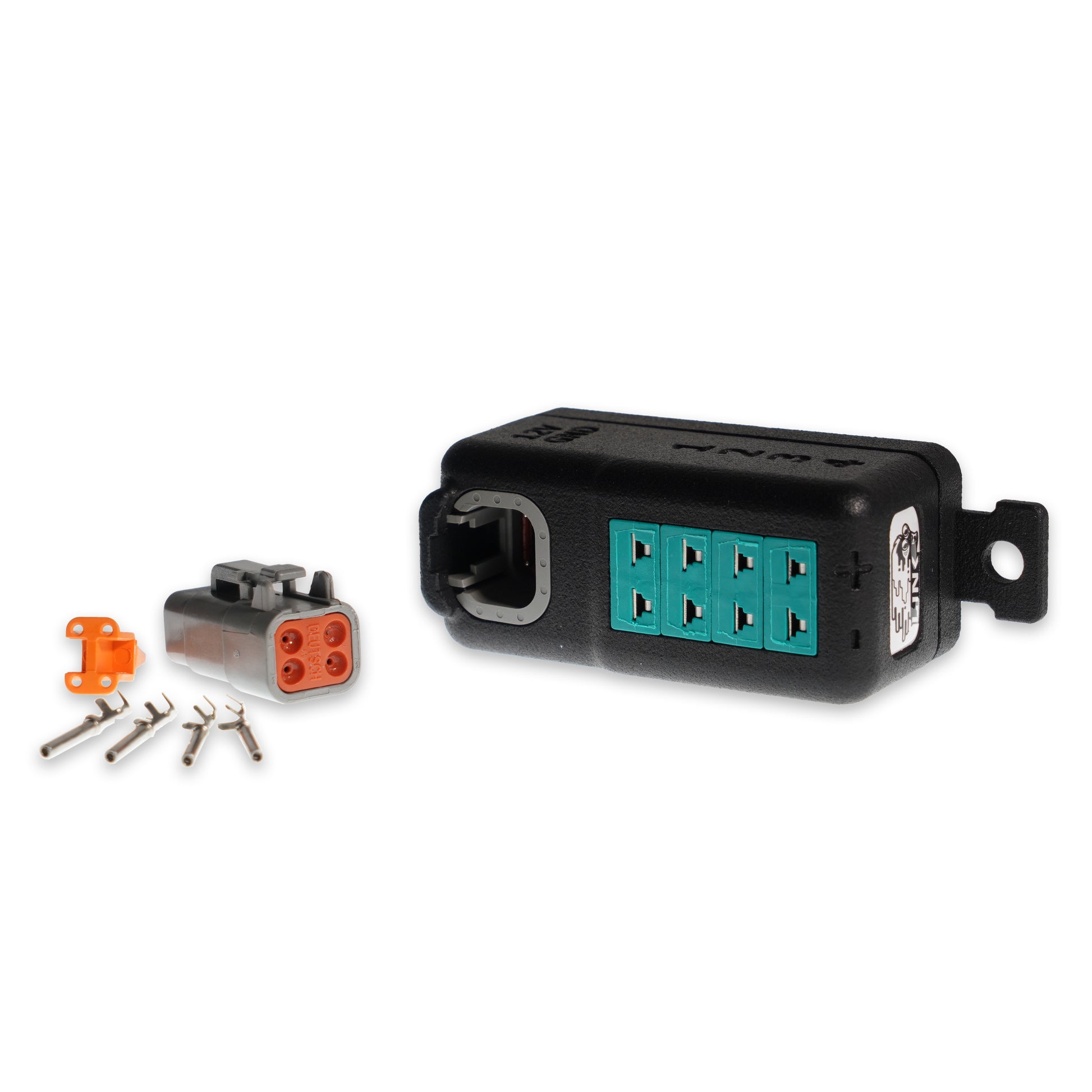

TCC04 4 Channel EGT to CAN Module

Link TCC04 4 Channel EGT to CAN module, powered by CANchecked The TCC04 EGT to CAN module allows you to connect up to four Type-K thermocouples and send the values via CAN bus and/or monitor them directly on your wireless enabled device. Type-K thermocouples are suitable for various applications such as measuring exhaust gas temperature (EGT), temperatures before/after the intercooler, turbo housings, cylinder head temperatures, water temperature, oil temperature and more. All measurements are cold junction compensated with a measuring range of 0 to 1250°C in 0.25°C resolution (14bit). The TCC04 feature a four-pin DTM connector for CAN & power that is pin compatible with Links standard CAN pinout and CAN cables range. CAN 2.0A/B standard is supported with flexible configuration. Wireless connectivity allows you to configure and update your module via smartphone or PC and query the current temperature and thermocouple status. Features: - 4 x cold junction compensated type-K inputs - CAN Bus connection to ECU (Pre-Configured for Link ECU) - Measuring range from 0 to 1250°C (32 to 2282°F) with 0.25°C resolution - Detection of (more...) _x000D_ Technical Specifications: _x000D_ _x000D_ _x000D_ _x000D_ DTM 4 CAN Pinout (Supports Links CAN pinout schema and CAN cables range) _x000D_ _x000D_ _x000D_ Pin 1: 12V Pin 2: Ground Pin 3: Can Low Pin 4: Can High _x000D_ _x000D_ _x000D_ Accuracy: maximum 2% deviation _x000D_ _x000D_ _x000D_ Dimension (L x W x H) – 97.3 x 31.5 x 34.6mm _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ Configuration Options: _x000D_ _x000D_ _x000D_ The module can be configured via wireless: _x000D_ _x000D_ _x000D_ _x000D_ Can Speed: 125kbps, 250kbps, 500kbps, 1Mbps _x000D_ _x000D_ _x000D_ Emulation: Standard, All major aftermarket EGT/Thermocouple to CAN Modules _x000D_ _x000D_ _x000D_ Change of standard Can Bus ID _x000D_ _x000D_ _x000D_ Change Big/Little Endian _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ Set-Up and Installation Guide _x000D_
