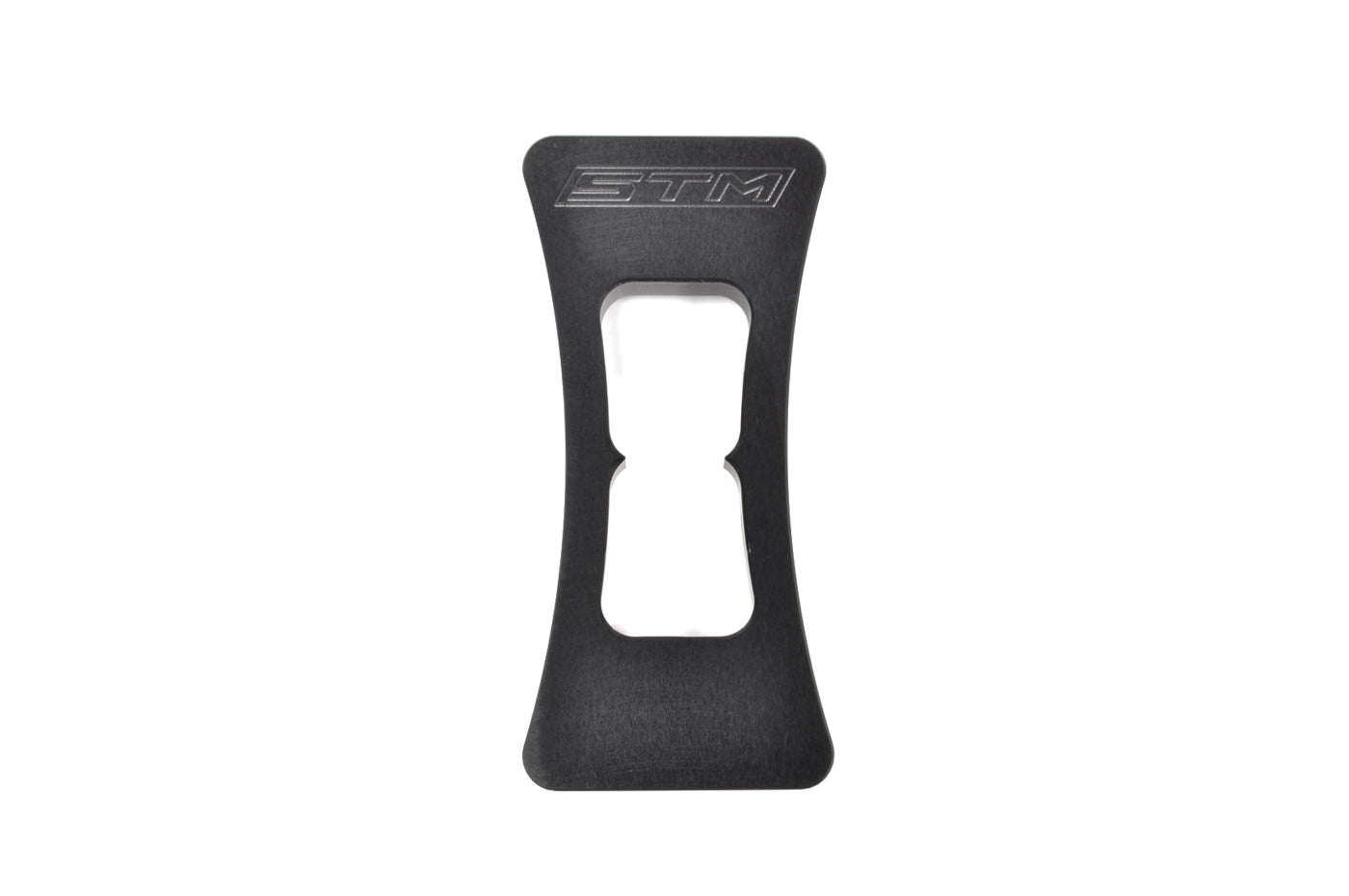

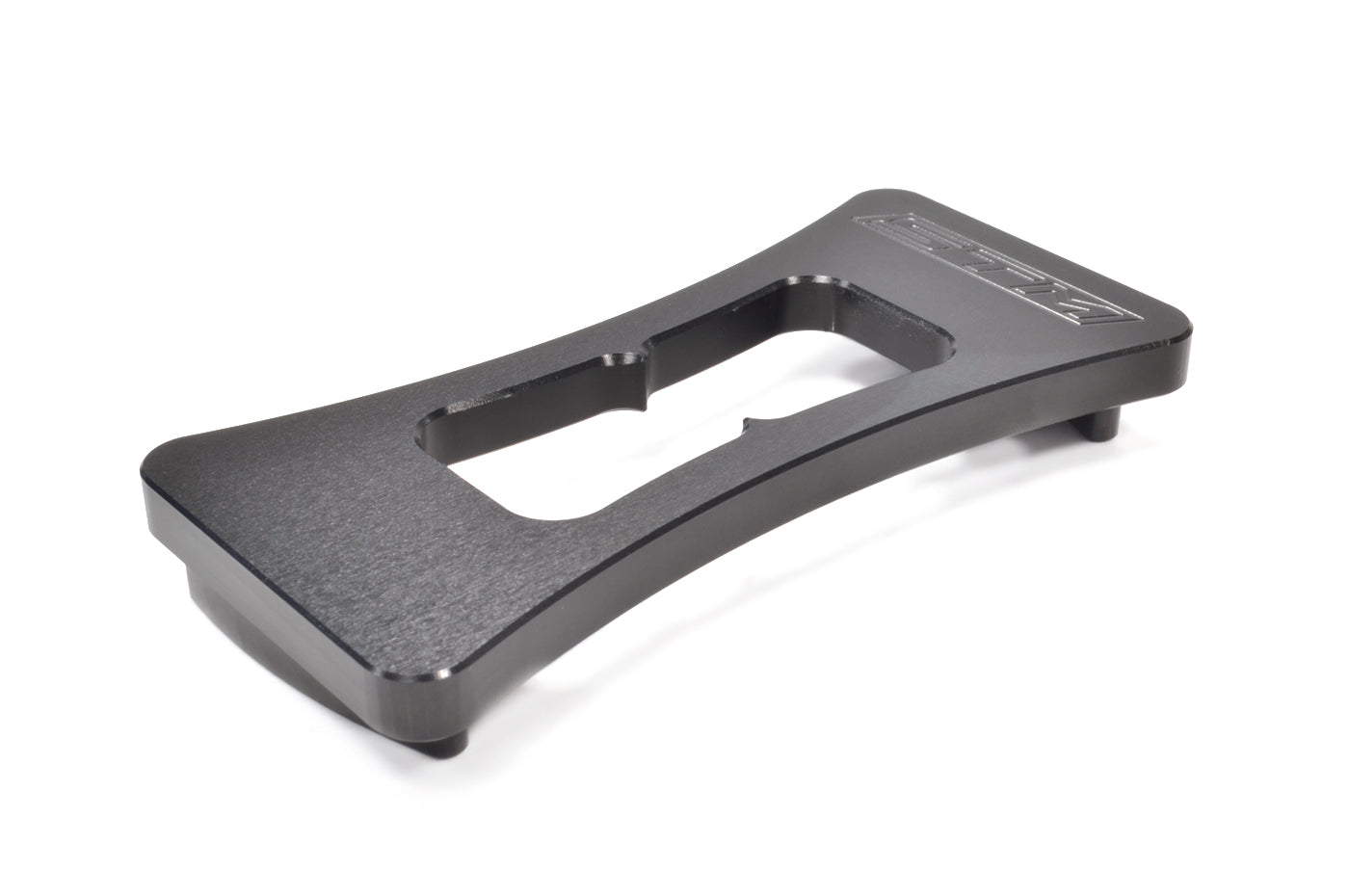

STM 4G63 Evo DSM Timing Belt Cam Alignment Tool

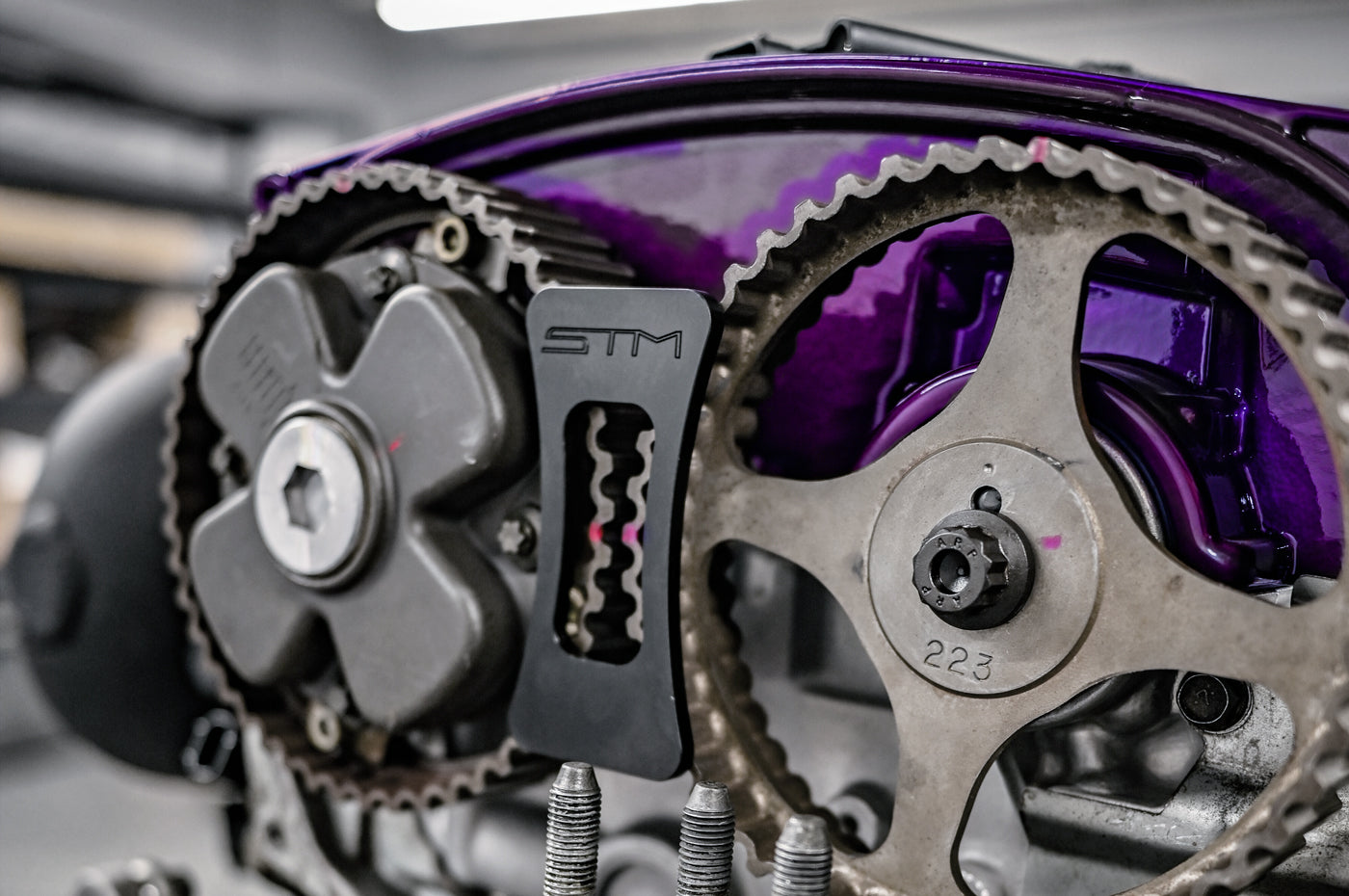

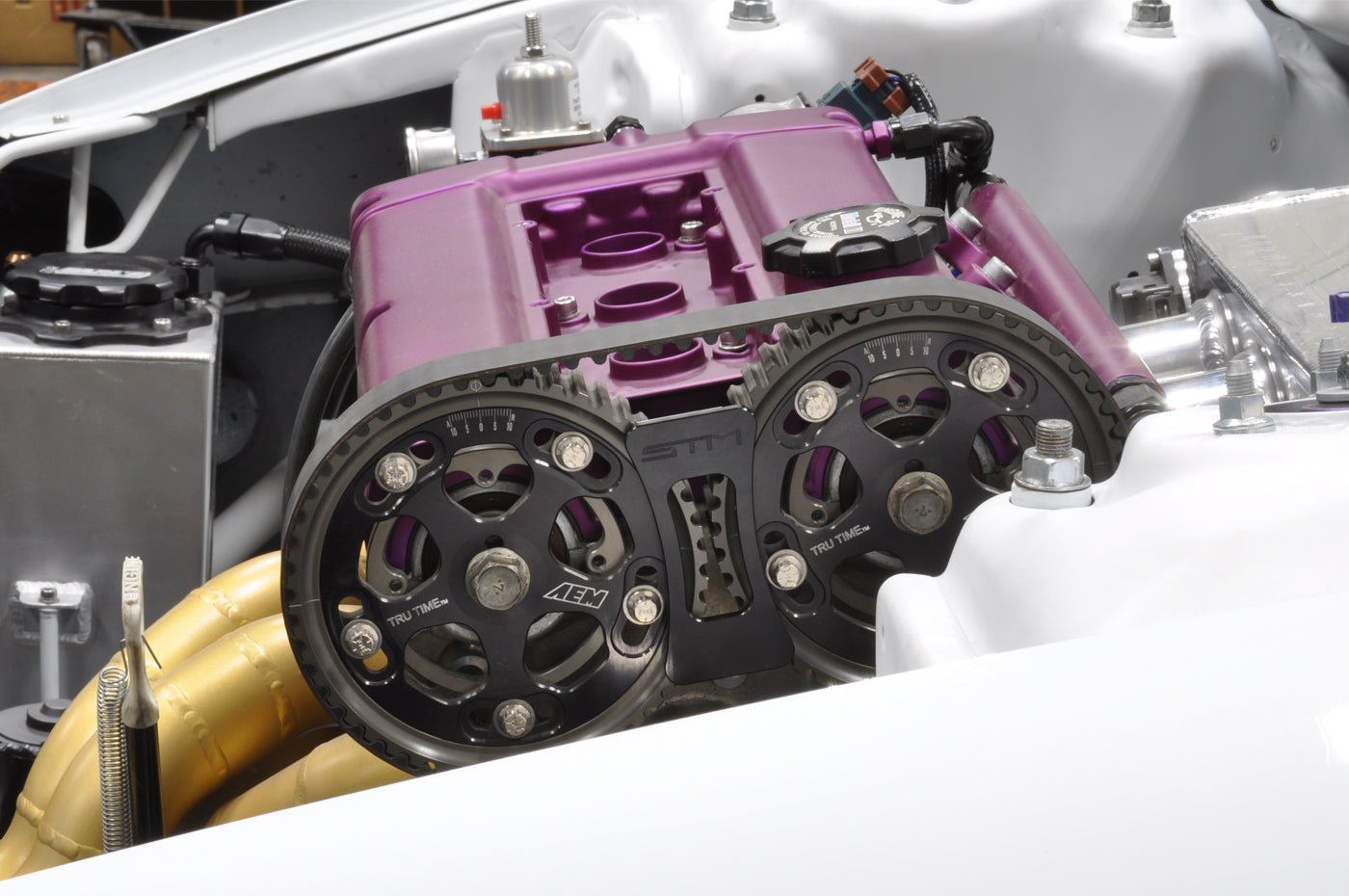

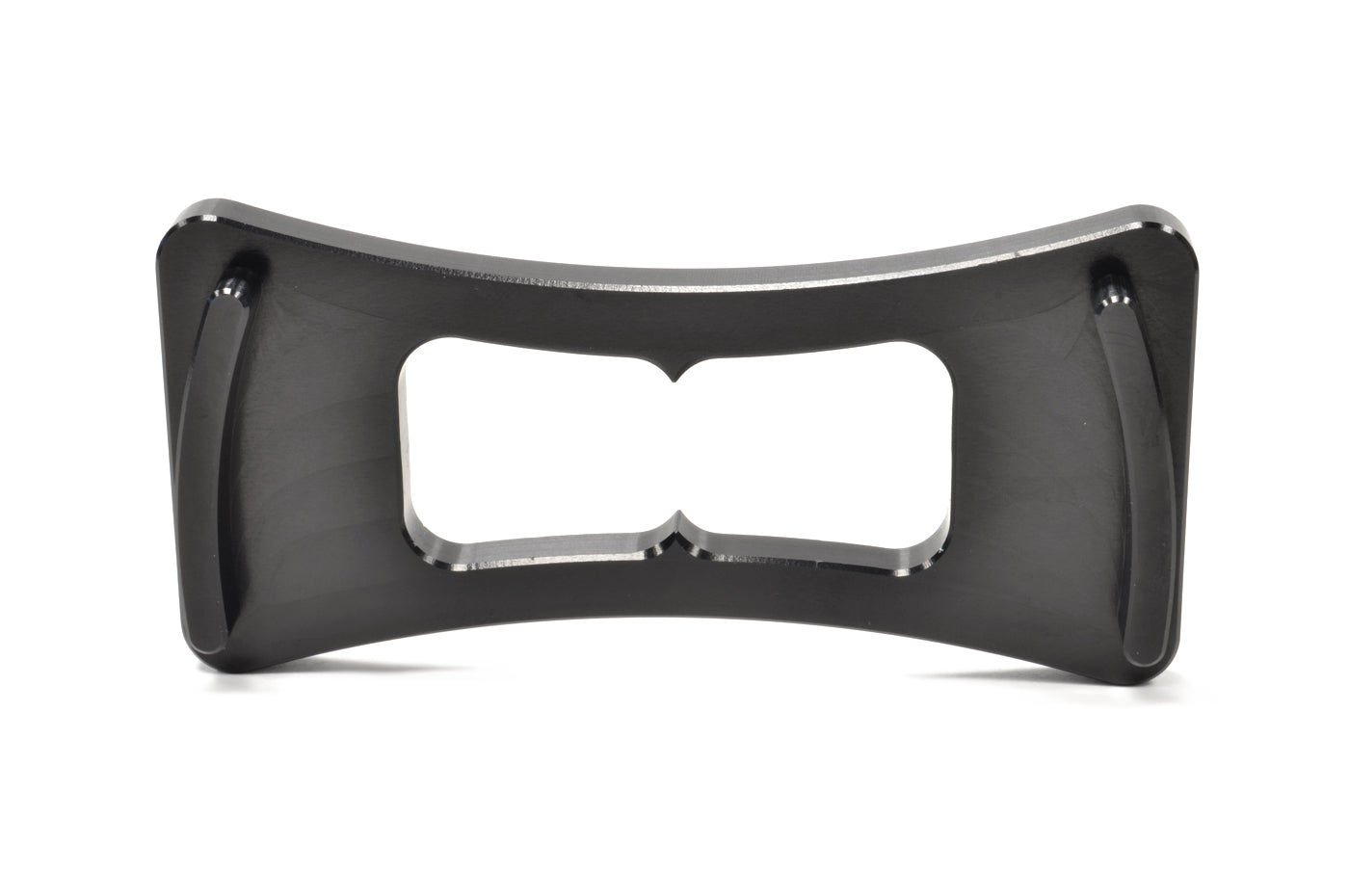

The redesigned STM 4G63 cam alignment tool features an open center with pointers to help locate the timing marks on your DSM cam gears.  While its a subtle change to the old tool, it certainly helps ensure things are timed correctly the first time around.  This tool works with all 4G63 1G/2G DSM, GVR4 and Evolution 1-9 models.  Please note that the pointers are only for DSM's.  Evo Cam gear marks point up and align with the valve cover.

Vehicle Fitment:
Mitsubishi 4G63/4G63T
1992-2006 Evolution I-IX
1990-1999 Eclipse GST/GSX
1990-1998 Talon TSi
1990-1994 Laser RS
1991-1992 Galant VR4

Features:
• Billet Aluminum
• Hard Anodized for long life against corrosion
• Might work as a bottle opener too
• Compatible with all 4G63 (DSM & Evo)
• USA Made
• Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects

Includes:
(1) Tool

Install Notes:
While you're at it, you might also want one of the STM Timing Belt Preload Eccentric Pulley Tool

Updated Nov 2024:
Now machined in-house at STM and features pointers to help alignment.
