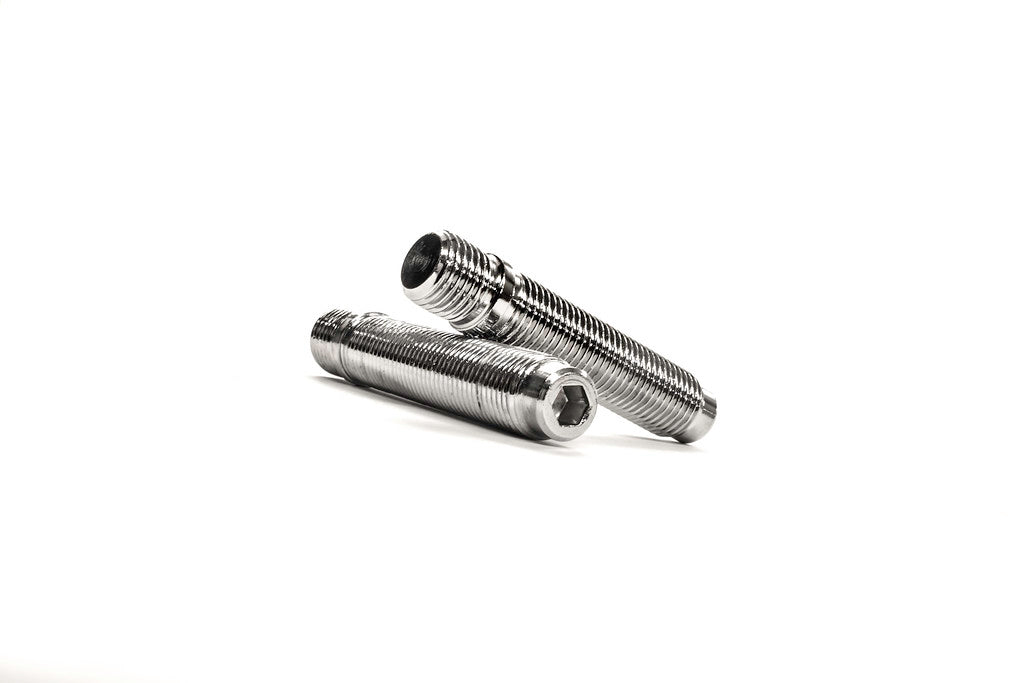

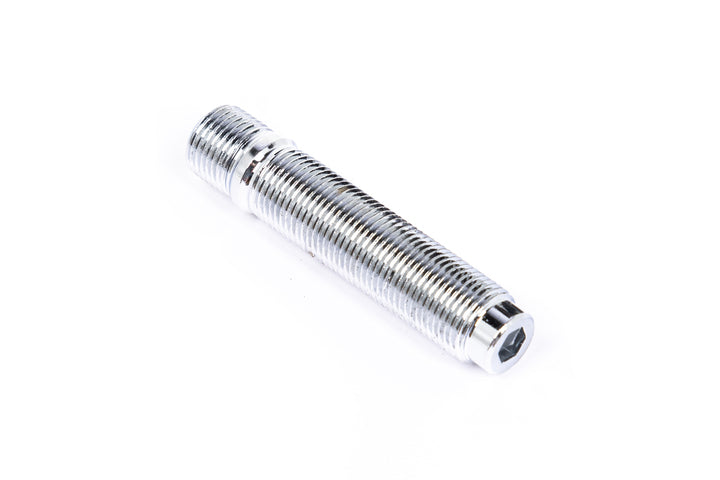

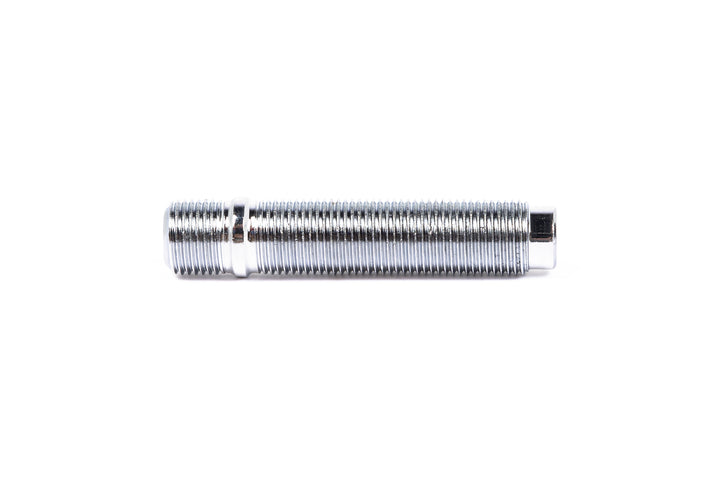

MMX Performance Replacement Wheel Stud Set - M14x1.25

The MMX Performance Replacement Wheel Stud Set is the service part for the MMX stud and nut conversion, supplied by IND as a complete set of 20 studs, enough to do all four wheels on a five-lug car. Two lengths are offered so stud length can be matched to the spacer being run.

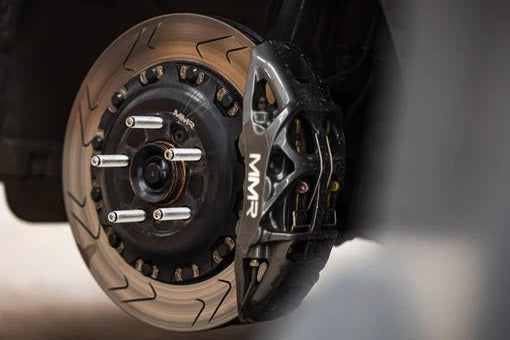

Each stud threads into the hub in place of the original wheel bolt and is driven by an internal 6mm Allen key rather than a socket, which is what makes the conversion straightforward to install and equally straightforward to reverse. Once fitted, the wheel locates over the studs and is secured with wheel nuts, removing the balancing act of lining up bolt holes while supporting the weight of the wheel.

Length is chosen by spacer. The 70mm stud suits no spacer or up to a 10mm spacer. The 80mm stud covers spacers from 10mm to 20mm. Running the wrong length either leaves insufficient thread engagement at the nut or leaves the stud protruding further than it should.

These studs are the MMX replacement component and are designed to work with the MMX stud and nut kit. They are not a substitute for another manufacturer's stud conversion, and wheel nuts are not included.

Product Details

• Supplied as a complete set of 20 studs, covering all four wheels
• Replacement wheel studs for the MMX stud and nut conversion
• M14 x 1.25 thread for BMW and MINI applications
• Available in 70mm and 80mm lengths
• Internal 6mm Allen drive for installation
• 13mm threaded hub shank
• 8mm unthreaded shank for brake disc clearance
• Manufactured from heat-treated high carbon steel
• Chrome plated finish
• Maximum approved vehicle weight: 2500kg
• Wheel nuts are not included

Available Lengths

• MMR37-1503-70: 70mm, for no spacer or up to a 10mm spacer
• MMR37-1503-80: 80mm, for spacers from 10mm to 20mm

Installation Guide

Review the MMX stud fitting guide before installation. It covers thread cleaning, Loctite application, stud torque, wheel nut torque and the post-installation re-torque procedure.

Download the MMX Wheel Stud Fitting Guide

The guide covers the complete stud and nut conversion. This listing is for replacement wheel studs only.
