Mitsubishi Evo X Catch Can Drain Kit by MAPerformance

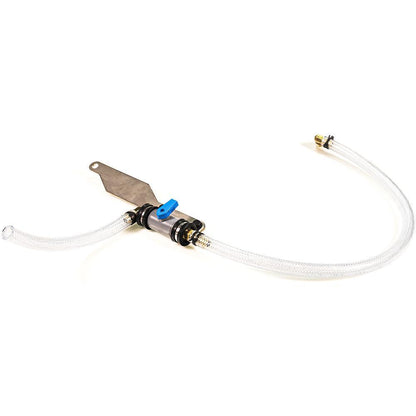

MAPerformance Evo X Oil Catch Can Drain Kit

Designed as a direct fit option for our MAPerformance Billet Evo X Oil catch can, this drain kit offers the ability to drain the captured oil mixture without ever having to remove the can, or reach your arm into hard to reach places and struggle to release a valve. After install the kit will never need to be removed again!

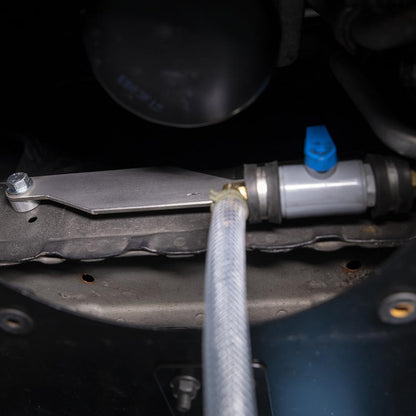

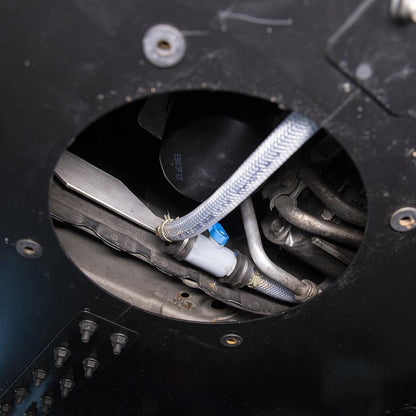

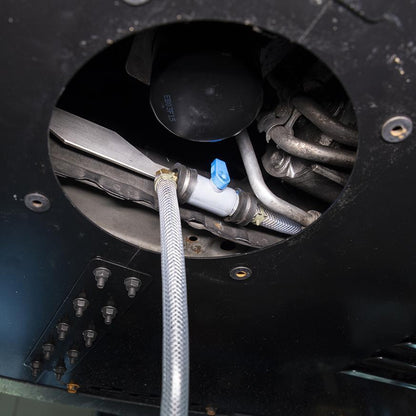

This kit is designed around multiple different undertrays and points the drain hose right out the oil filter access hole (Some trimming of the hose may be required depending on undertray to fit perfect)

Features

• Comes Assembled and ready for install
• High Quality braided plastic tubing for a long lasting product
• Stainless bracket and hardware to reduce corrosion and rusting

Benefits

• Simple to install
• Only basic hand tools needed
• Easy to drain
• Long lasting

Please Note: For cars that drive in freezing climates, the drain valve is plastic and since it will be the lowest part of the system can accumulate water. If/When that water freezes it can crack the valve. Please be aware of this and drain it often.

Applications

• 2008 - 2015 Mitsubishi Evo X
• 2009 - 2015 Mitsubishi Lancer Ralliart

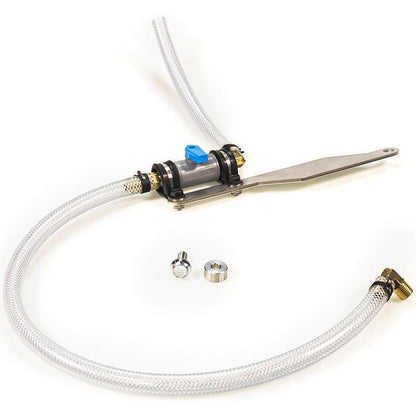

What's In The Box?

• 1 - Long transparent braided drain hose (Assembled)
• 1 - Short transparent braided drain hose (Assembled)

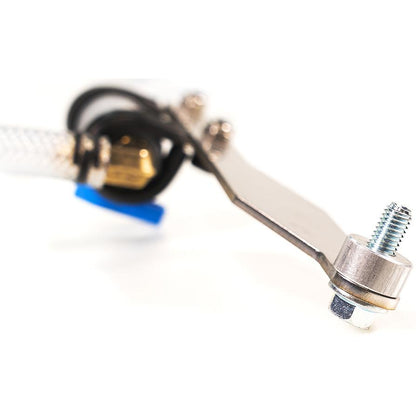

• 1 - Laser cut stainless steel mounting bracket (Assembled)
• 1 - Drain valve (Assembled)
• 1 - Straight ¼” NPT ⅜” barb brass fitting (Assembled)

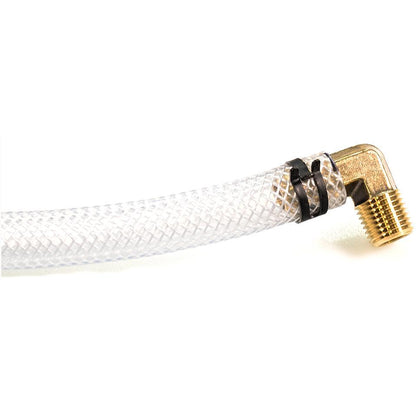

• 2 - 90° ¼” NPT ⅜” barb brass fitting
• 2 - Cushion clamps (Assembled)
• 2 - 6x1.0 bolts and Nylon locking nuts (Assembled)
• 3 - Spring clamps (Assembled)
• 1 - ⅜” Aluminum spacer
• 1 - 8x1.25 flange head bolt

References

• Installation Instructions

Warranty

• MAP Limited Lifetime Warranty
