MAP Complete 3.5" Intercooler Kit | 2008-2015 Mitsubishi Evo X (EVOX-IC-KIT)

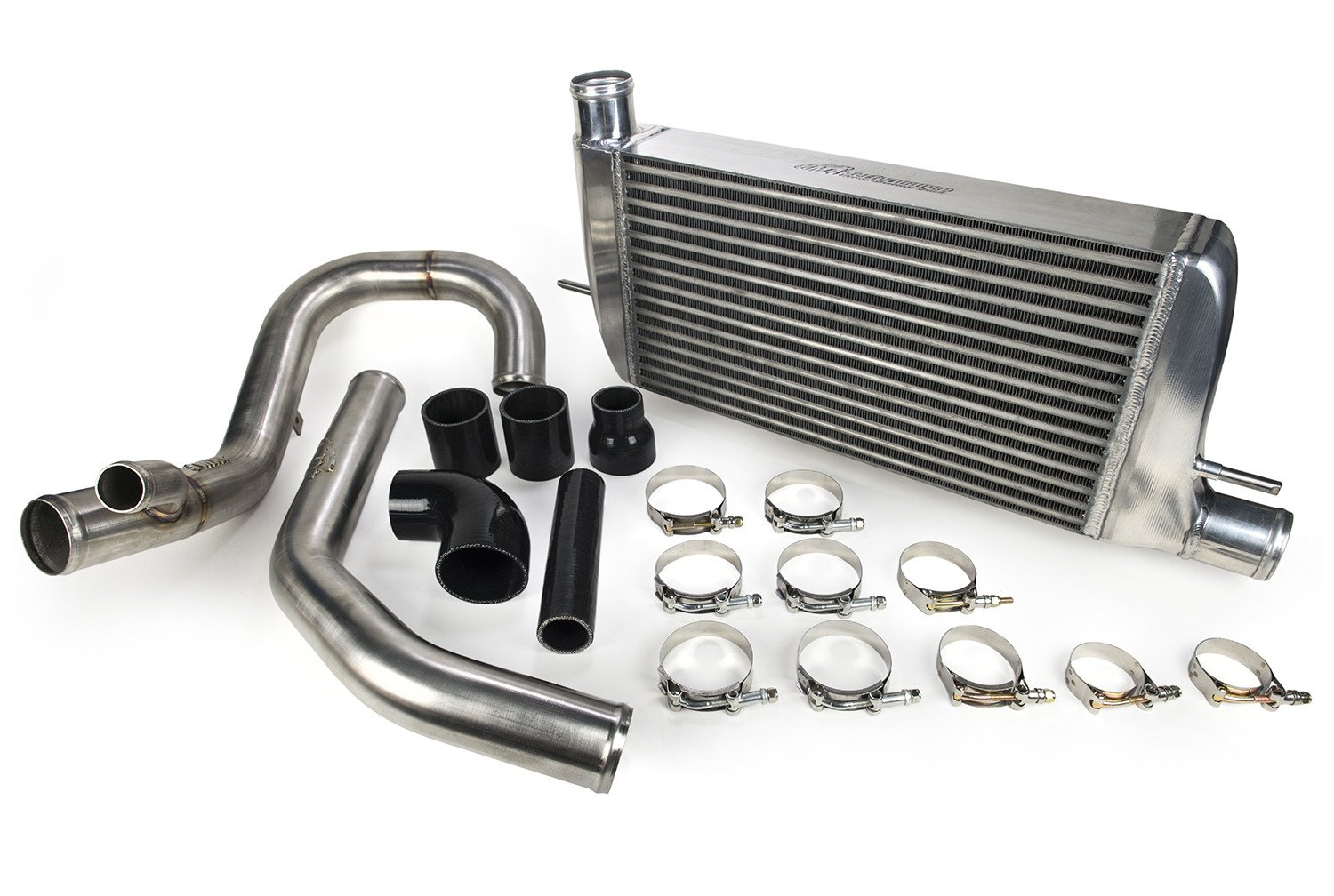

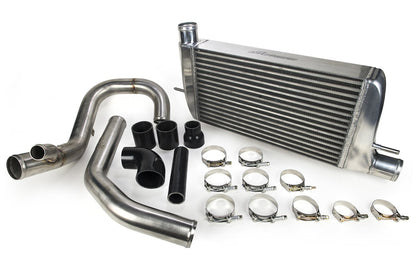

Complete Evo X Intercooler Kit
Are you seeking a complete Evo X intercooler kit? Our MAP fabricators have designed the ideal kit that will help you crush the competition in aesthetics, fitment, and power.
Starting with our intercooler core, you'll get CNC machined 6061-T6 Aluminum end tanks which have outflowed the competitors on many occasions. We paired these works of art with a thick 3.5" bar and plate intercooler core for maximum cooling potential, even at high ambient air temperatures.
Along with the upgraded 3.5" core we've included our complete USA Made MAP 2.5" Evo X intercooler piping kit. Utilizing mandrel bent stainless steel piping, these intercooler pipes will help improve flow, bringing you faster spool times, lower heat absorption for cooler charge, andmore reliability over factory plastic piping. We're even throwing in our 5-ply silicone couplers and t-bolt clamps at no extra charge!

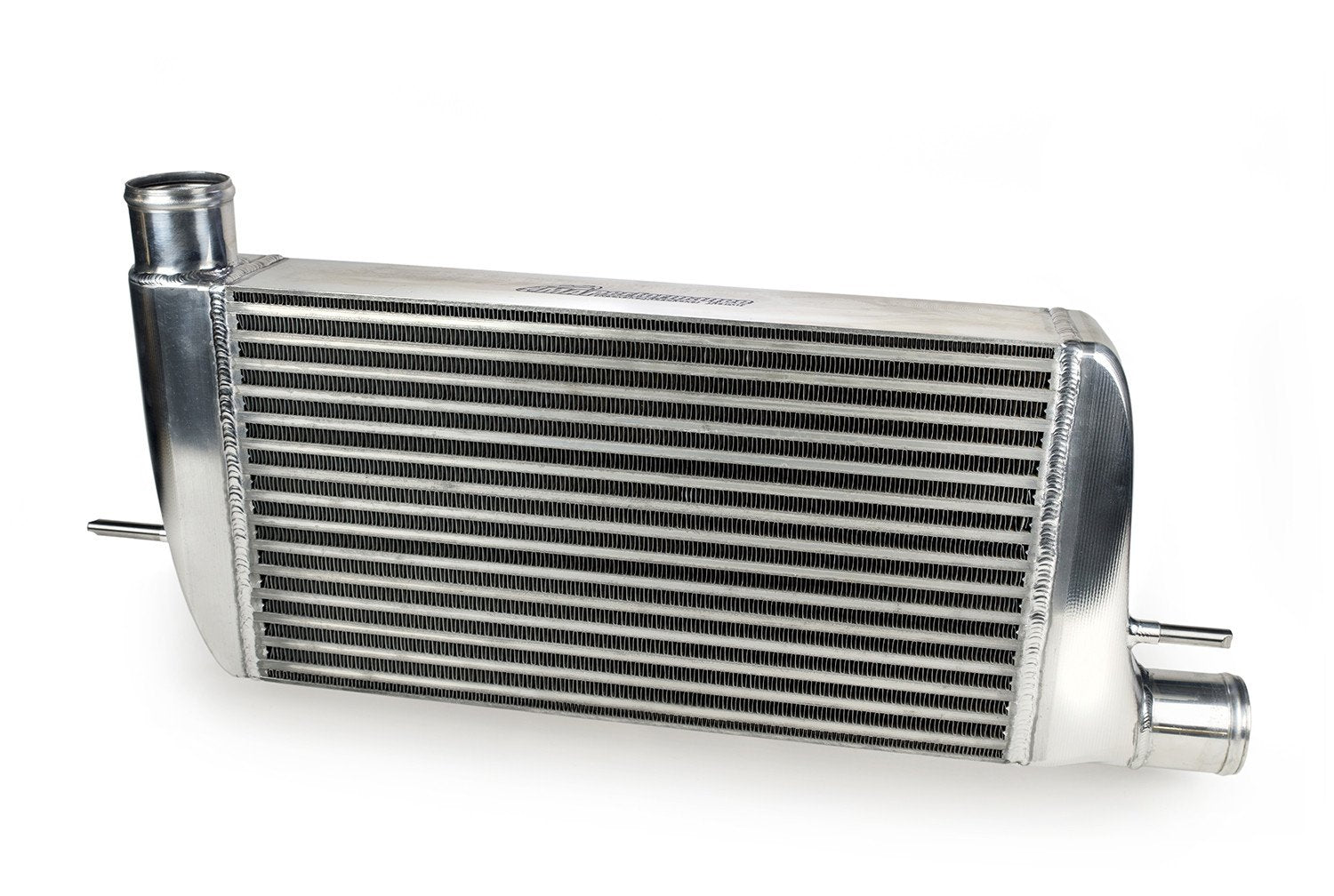

Intercooler Core Features
- CAD designed CNC machined billet 6061-T6 aluminum end tanks
- 20" x 11" x 3.5" Bar & Plate core
- Weight: 20 lbs
- Direct bolt in design
- Pressure checked to 35+ psi
- Includes all applicable couplers, clamps, and mounting hardware
- Lifetime limited warranty
Intercooler Piping Features
- 2.5" Mandrel Bent 304SS USA-Made Stainless Steel Tubing (Made in USA)
- Squirrelly Performance Stainless T-bolt Clamps
- 4 Ply Squirrelly Performance Silicone Couplers
- Fully Tig Welded with back-purge
- Utilizes factory BOV connection
- Includes Front Intercooler Pipe
- Fits GSR and MR, USDM and JDM
- Will work with factory airbox
- CAD designed end tanks yield optimal airflow and maximum performance
- Billet aluminum end tanks provide superior fit and finish
- The Bar & Plate core construction features minimal pressure drop and excellent cooling efficiency up to 750hp
- A direct bolt in design allows for the retention of the factory crash beam and compatibility with stock location charge piping
- 2008-2015 Mitsubishi Lancer Evolution X
What's in the box?
- 3.5 Intercooler Core
- Front, Upper and Lower Piping
- T-Bolt clamps
- Mounting hardware
- MAP Limited Lifetime Warranty
