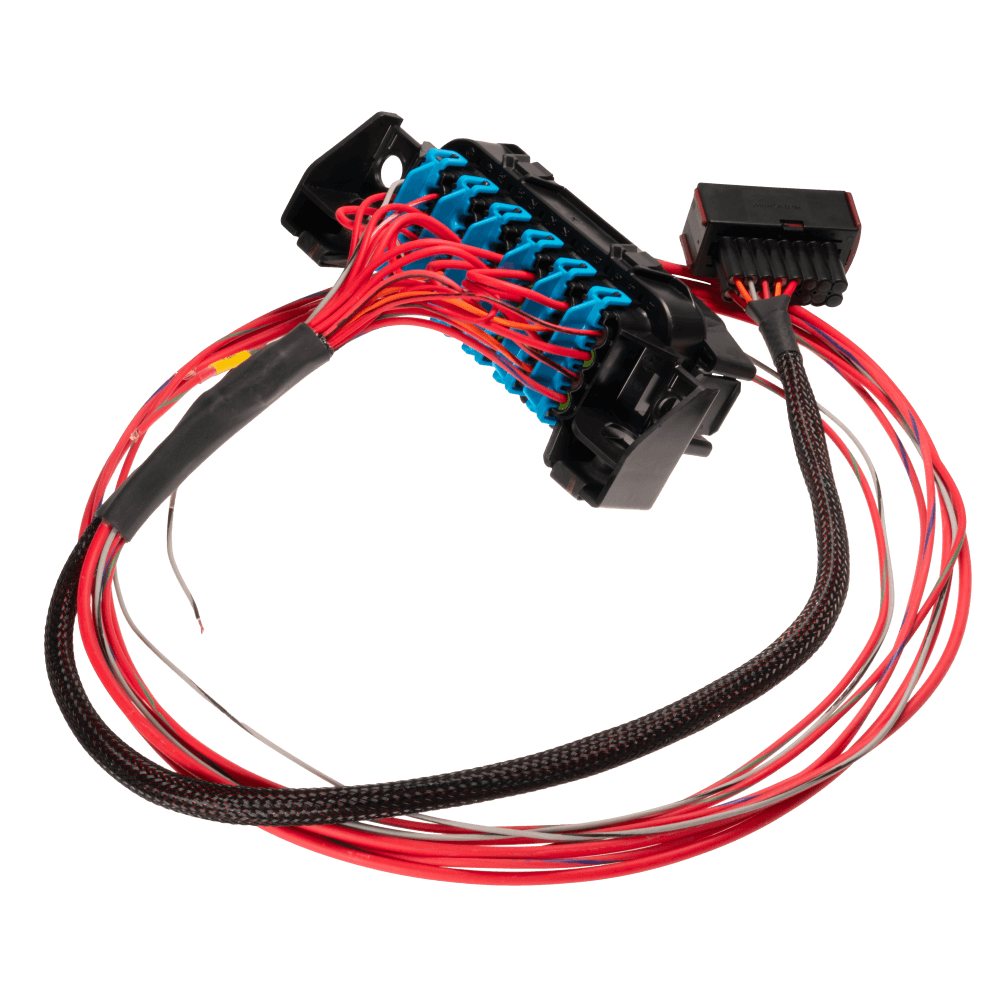

LS Harness - Fuse and Relay Box

• Highly recommended item to greatly simplify the wiring connections between the Link LS Terminated Engine Harness and the car chassis. • When added to the Link LS harness the user only needs to connect 2 to 4 flying lead wires themselves to have a complete wiring system capable of running an engine - no special crimping tools, splicing or complex circuits required. The 4 connections are; Battery 12V, Ignition Switch, optionally Fuel pump and Cooling Fan. • Provides fused power to all engine and ecu connected devices, takes care of the often complex "ecu hold power" wiring for models with stepper motor idle valves, provides 3** high current ecu controlled outputs for direct fuel pump and fan connection. • Fully sealed high quality rugged Busman enclosure, IP67 rated. • Made in USA with genuine high quality Song Chuan automotive relays, high temp TXL wire, ultrasonic welded splices. • The 4 flying leads for connection to Battery, Ign switch, Fuel pump and Fan are 1500mm length, the main bundle that connects to the engine harness is 500mm length. • See Terminated LS Engine Harness Manual linked below for connection details and further info. Online Instr(more...)
