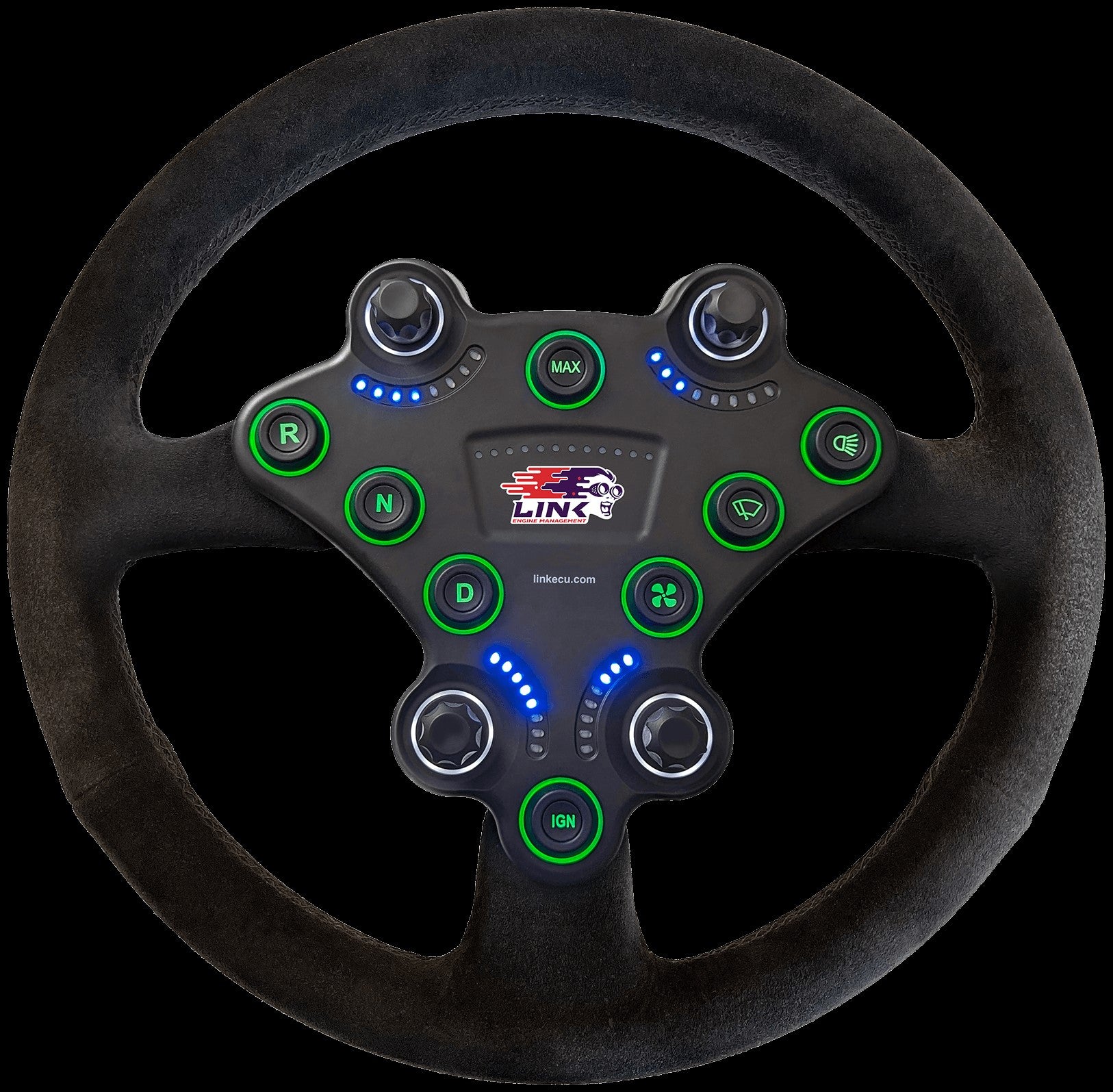

Link RACEPAD - Steering Wheel CAN Keypad

RacePad is the ultimate CAN-bus steering wheel button panel designed to elevate your racing experience to the next level. With 4 rotary knobs and 8 easy-to-reach buttons, RacePad is the ideal addition to any race car, enabling both professional drivers and amateurs to fully customize their driving style thanks to individualized button icons and LED colour selection. See features tab for more info Box Contents: 1 x RACEPAD (steering wheel is not included) 1 x Mounting Bracket 1 x DTM4 Mating Connector Kit 1 x Molex Mating Connector Kit 1 x Link Sticker 1 x Keypad Button Insert – Link Logo Note: Racepad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose. 8 Backlit Buttons and 4 Rotary Knobs 4 Analogue Inputs for additional Sensors or Switches CAN Configurable with G4X/G5 PC Link – Change button LED backlight colour, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle 8 Blue LED Lights on Rotary Encoders while all 8 Pushbuttons Buttons have customisable RGB LED Rings CAN Bus Communication back to Engine Management System Compatible with all G4X and G5 ECUs Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical 12 Fixed LEDs in centre can be used for configurable feedback – RPM etc. Includes mounting plate adapter to support common aftermarket steering wheel bolt patterns including MOMO (6x70mm) and Nardi (6x74 mm) DTM4 Connector for CAN and Power, Molex Connector for Analog Inputs Specifications Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low) + Molex 39-01-3069 Switch Life - 3 million operations Default Baud(more...)
