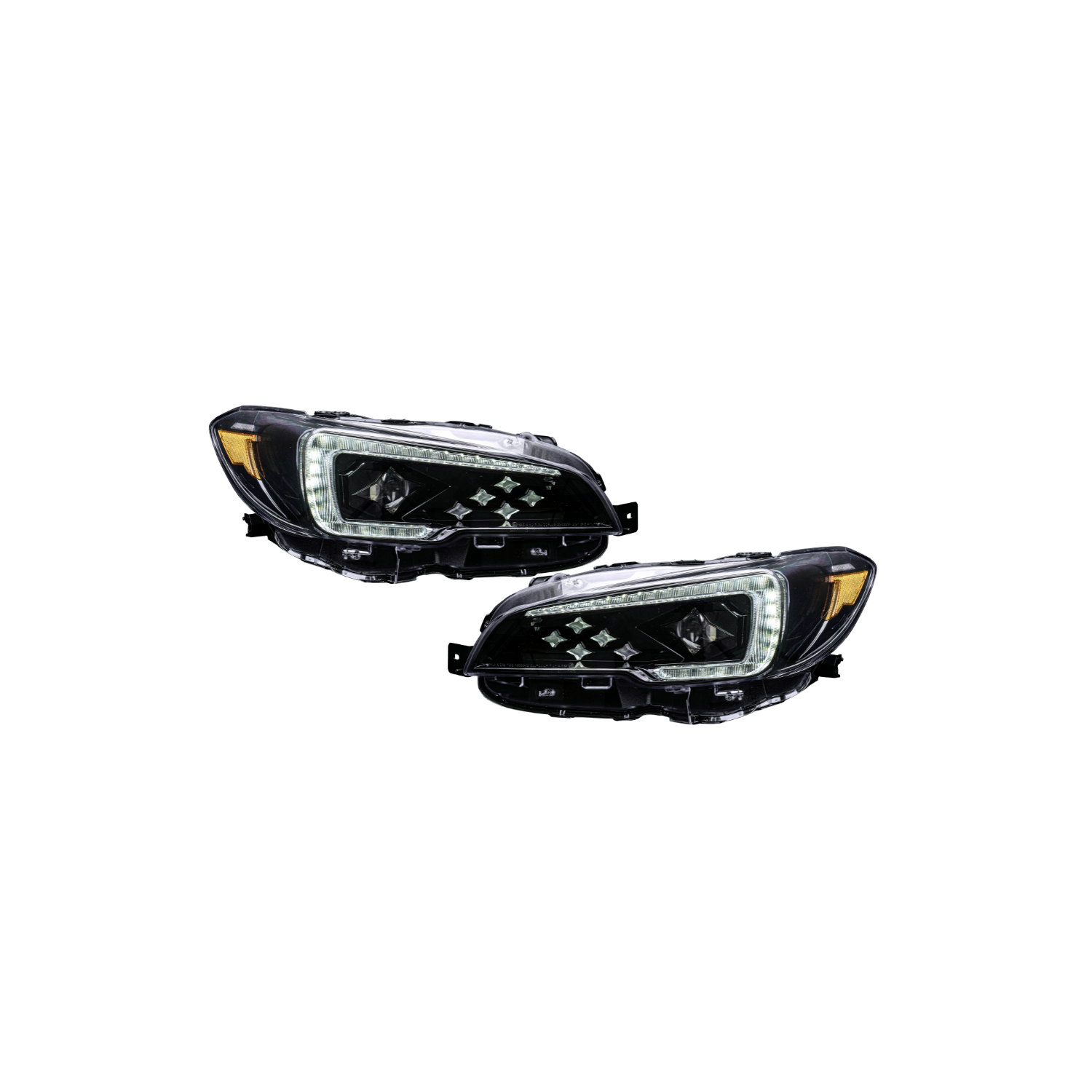

JDMuscle [15-17 WRX/STI, 18-21 WRX] Base & Premium Star Series Headlight
JDMuscle [15-17 WRX/STI, 18-21 WRX] Base & Premium Star Series Headlight
SKU: JDM-WRX15-HL#S
Need it ASAP? Check stock or lead times, please give us a call at 801-769-6929 or reach out to one of our sales reps!
Couldn't load pickup availability
Enhance the look and performance of your Subaru with the JDMuscle Star Series Headlight for the 15-17 Subaru WRX/STI and 18-21 Subaru WRX Base & Premium. Featuring a unique signature star pattern, these headlights also come with sequential turn signals and a daytime running light (DRL) for added visibility and style.
Key Features:
- Signature Star Pattern: Eye-catching design with a distinct star pattern for an upgraded look.
- Sequential Turn Signals: Dynamic lighting effect for enhanced signaling visibility.
- DRL Function: Integrated daytime running lights for increased safety.
- LHD and RHD Compatibility: Available in both Left-Hand Drive (LHD) and Right-Hand Drive (RHD) configurations.
- LED Light Source: Long-lasting, energy-efficient LED lighting for both the DRL and turn signals.
- Regulation Compliance: Meets DOT, SAE, and ECE standards for quality and safety.
Specifications:
- Operating Voltage: 11-16V
- Nominal Current: 6.1A-8.77A
- Max Power Consumption: 72.5W (13.5V)
- Light Functions: Low beam, high beam, DRL, position, turn signal, side marker, and reflector.
- Color Temperature: White 5700K for a clean, modern appearance.
- IP Rating: FMVSS-108, SAE J575e, ensuring durability and weather resistance.
- EMI Protection: CISPR 25 Class 3 for minimized electromagnetic interference.
-
LED Count:
- DRL/Position light: 31 LEDs
- Turn signal: 31 LEDs
- Side marker light: 3 LEDs
-
Effective Light Output:
- DRL: 650cd
- Position light: 120cd
- Turn signal: 800cd
Dimensions: Length 437mm x Width 229mm x Height 446mm
Upgrade your Subaru with these stylish and functional headlights, providing better visibility and a sleek look.
