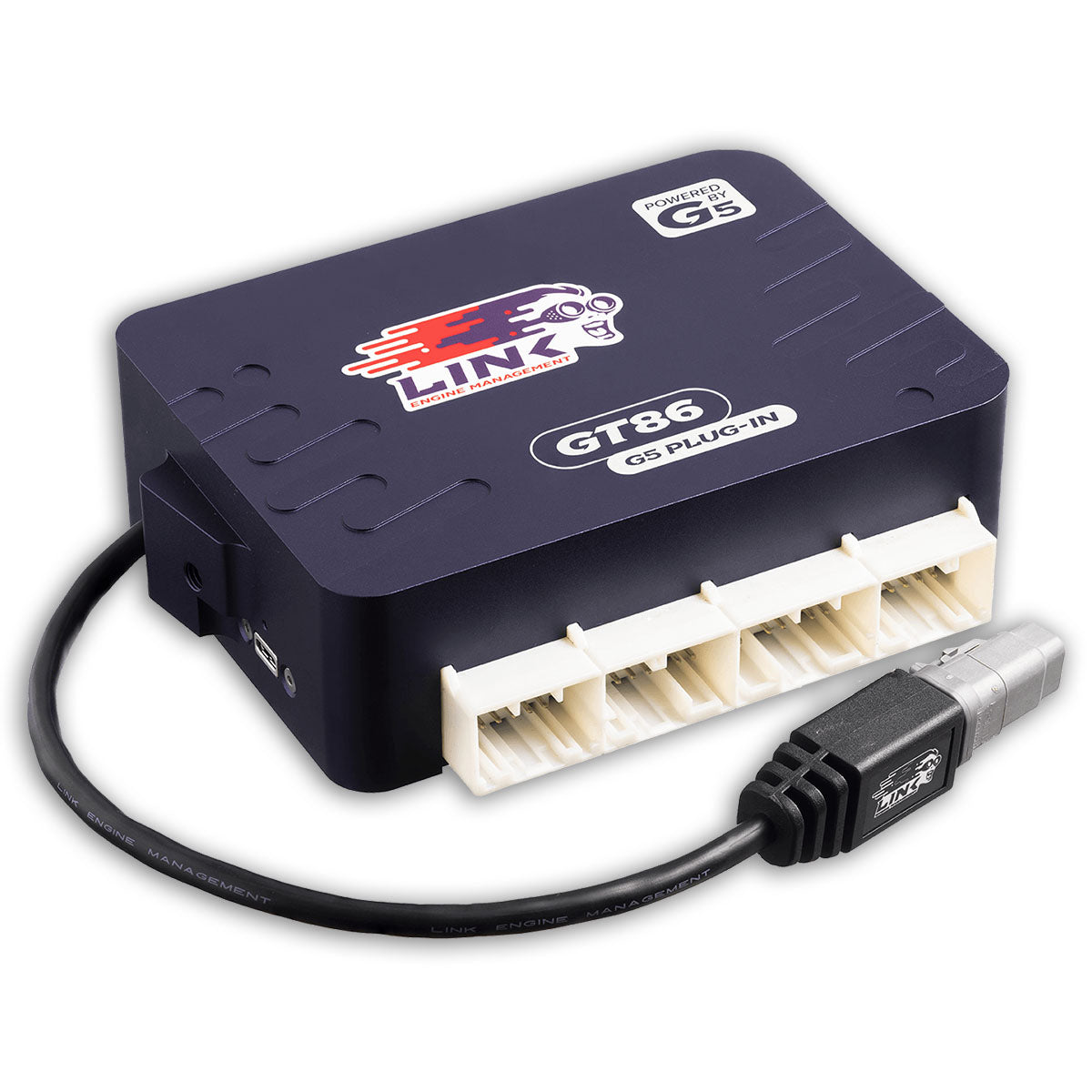

G5 ECU Plug-In - Toyota GT86/Subaru BRZ - RHD

The GT86 G5 Plug-in is a standalone plug and play replacement for the factory ECU and plugs straight into the original wiring loom, no adapter harness needed and comes with a sample map for a tuning head start. The GT86 G5 Plug-in processing unit runs the same powerful microcontroller and firmware as the G5 Voodoo Pro. Designed for the 2.0 L 4U-GSE/FA20 H4 Engine Right-Hand Drive cars. Support for both Manual and Automatic Transmissions. Models Supported by 241-4000 Automotive computer unit: Toyota 86, ZN6, 2012 – 2021 Toyota GT86, ZN6, 2012-2021 Subaru BR(more...) Control both Direct and Port Injection Full OEM CAN Bus integration Control both Manual and Automatic Transmissions Billet CNC Aluminium Enclosure Mounts in OEM Location Includes a locking USB-C extension cable for easy tuning access Comes with a built-in powered DTM4 CAN cable Full factory E-throttle (DBW) control Full VVT-i control 512MB of Onboard Data Logging in data storage unit, up to 250 channels and 100k samples per second Runs on Link’s renowned PC Link, giving you the confidence to get started right away Backed by Link’s Limited Lifetime Warranty * The GT86 plug-in does not support factory wide band sensors. All Link Plug-in ECUs come with the below features as standard: Plug and Play - A Direct Replacement for the Factory ECU, no adapter looms needed. All motorsport features enabled – Anti-lag, Boost Control, Cruise Control, Gear Shift Control, Nitrous Control, Launch Control, Paddle Shift Control, Race Timer and Power Management, Rolling Anti-lag and Traction Control Two CAN bus c(more...) Click here for User Manual _x000D_ _x000D_ _x000D_ _x000D_ I/O Options: _x000D_ _x000D_ _x000D_ _x000D_ The following expansion connector inputs/outputs are provided: _x000D_ _x000D_ _x000D_ _x000D_ Expansion connector 1: _x000D_ _x000D_ 1: +14V Out _x000D_ _x000D_ 2: AUX 15 _x000D_ _x000D_ 3: AUX 16 _x000D_ _x000D_ 4: DI 11 _x000D_ _x000D_ 5: DI 10 _x000D_ _x000D_ 6: DI 9 _x000D_ _x000D_ 7: +5V Out _x000D_ _x000D_ 8: GND _x000D_ _x000D_ _x000D_ _x000D_ Expansion Connector 2: _x000D_ _x000D_ 1: +14V Out _x000D_ _x000D_ 2: Not Connected _x000D_ _x000D_ 3: AN Volt 12 _x000D_ _x000D_ 4: AN Volt 11* _x000D_ _x000D_ 5: AN Volt 6* _x000D_ _x000D_ 6: AN Temp 4* _x000D_ _x000D_ 7: +5V Out _x000D_ _x000D_ 8: GND _x000D_ _x000D_ _x000D_ _x000D_ *These inputs each have a jumper to either connect them to the Expansion plug or to their normal functions on the main header. _x000D_
