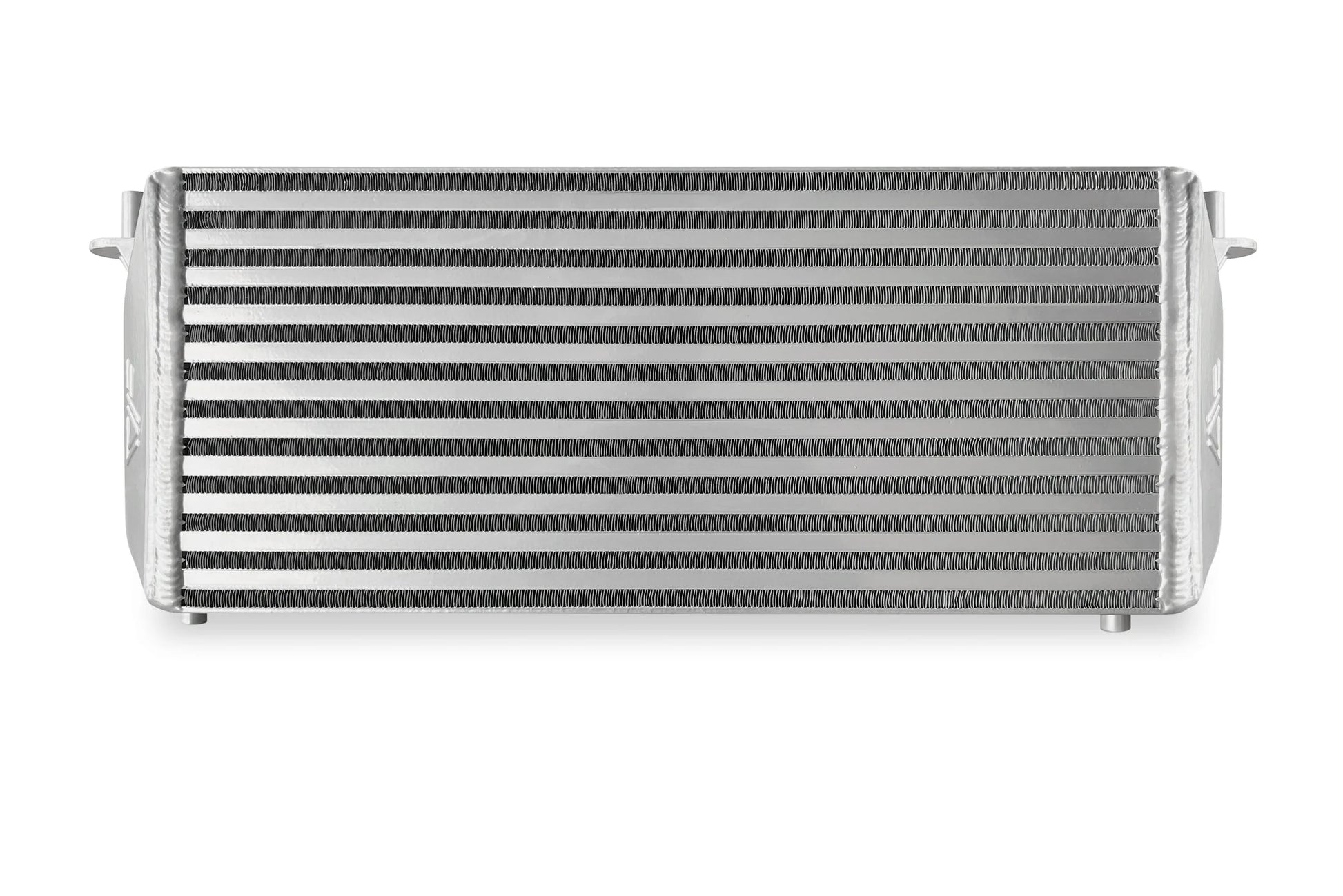

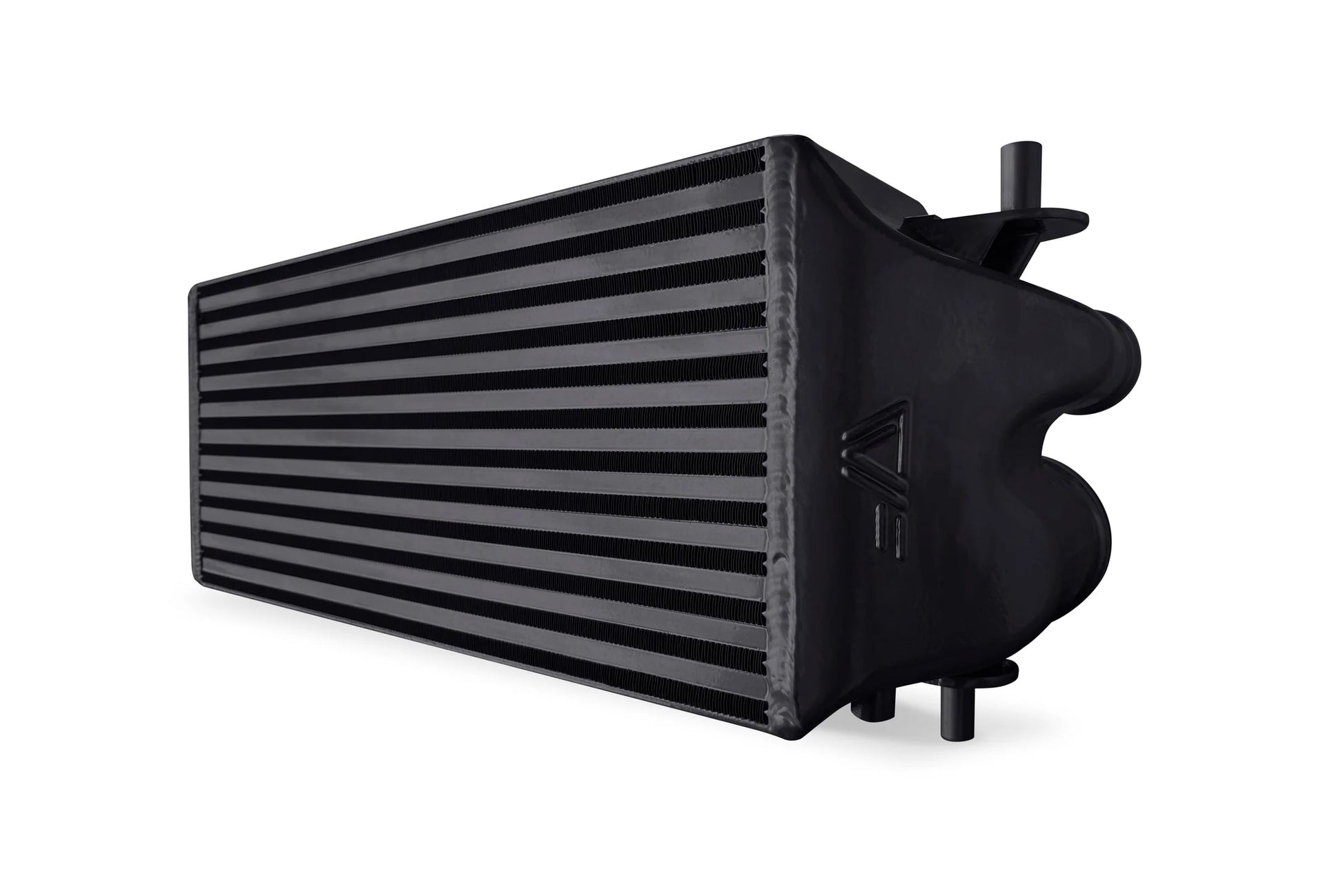

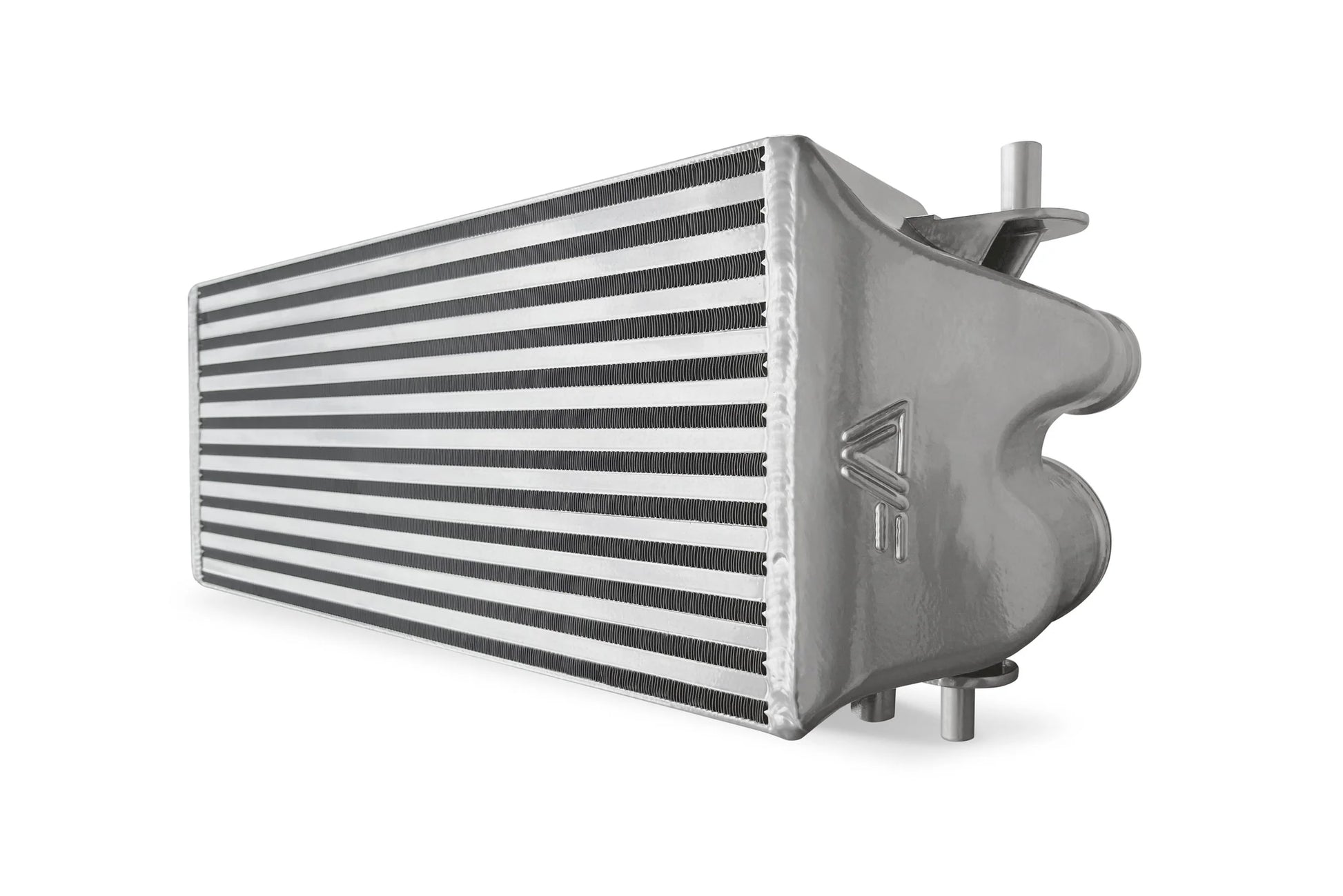

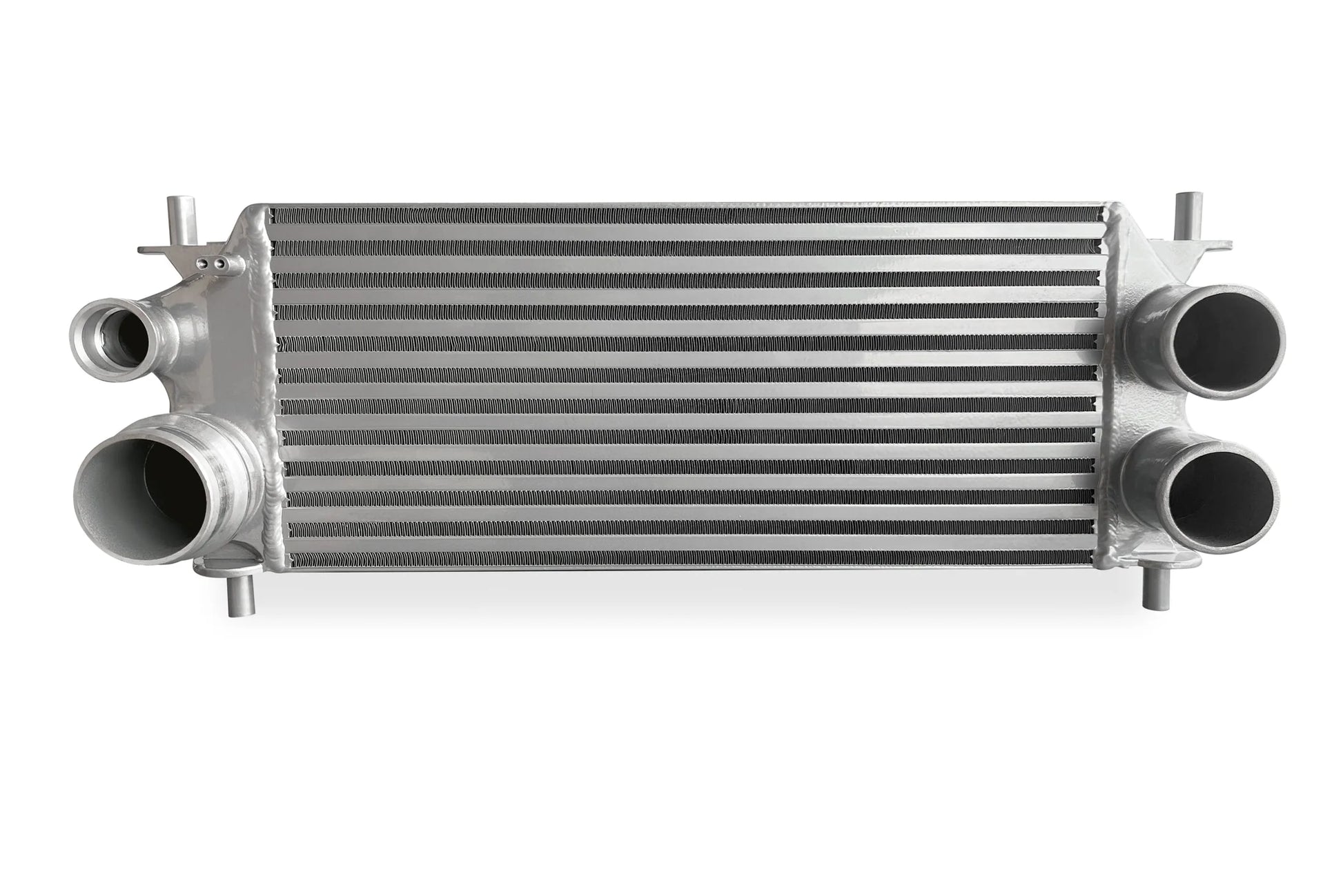

CVF Titan v2 Intercooler (2015-2025 F-150 2.7L/3.5L/Raptor EcoBoost; 2021-2025 3.5L PowerBoost & 2018+ Expedition & Navigator)

SEE FEEDBACK FROM THE ECOBOOST F-150 COMMUNITY HERE:

Detailed installation/product review from AmericanTrucks Ford on YouTube (Silver)

Detailed installation/product review from AmericanTrucks Ford on YouTube (Black)

Video of CVF TItan v2 vs. stock by MPT Performance on YouTube

Detailed installation video for PowerBoost by SkillShiftHQ on YouTube

Detailed installation video for Gen. 3 Raptor by Waterfowler 41 on YouTube

Detailed installation video for Gen. 2 Raptor by Auto Mafia Racing on YouTube

Detailed installation video for 2021 PowerBoost) by Gears & Gadgets on YouTube

Detailed product review by user Slater2111 at F150Forum.com

Detailed product review by user weaponsfree at FordRaptorForum.com

• 40+ degree reduction in Charge Air Temperature (CAT) observed in real-world conditions (original Titan featuring similar proprietary core composition)


• Direct bolt-on replacement - no modifications required other than removal of the AGS (active grille shutters)

• Condensation drain on the cold-side end tank allows for seamless draining of built-up fluid

• Over 82% greater core volume than OEM intercooler (21" x 9.43" x 5.32")


• High-flow cast end tanks (featuring the CVF logo) ensure considerably better airflow efficiency than welded aluminum

• TIG-welded bar-and-plate construction

• CVF Lifetime Warranty

TAKING THE EXCEPTIONAL VALUE OF THE ORIGINAL CVF TITAN INTERCOOLER ONE STEP FURTHER

While our original CVF Titan Intercooler is unmatched when it comes to performance for your hard-earned buck, the Titan v2 takes performance a step further by featuring a 27% larger core, eliminating the cold side coupler connection, and introducing a condensation drain on under the cold side end tank. The advanced design not only allows for better cooling than the already exceptional 40+ degree Charge Air Temperature (CAT) reduction proven by the CVF Titan (data charts are on the product page for the original CVF Titan here) but also seamless installation on 15+ F-150 EcoBoost models.

LESS HEAT, MORE POWER

Improve the performance of your EcoBoost F-150 by replacing the small, inefficient stock intercooler to reduce heat and produce more power. This intercooler is a direct fit replacement that features a core over 82% larger than the stock unit.

EXCEPTIONAL CONSTRUCTION FOR MAXIMUM EFFICIENCY

Manufactured from top-grade aluminum, the CVF Titan v2 Intercooler features a TIG-welded proprietary bar-and-plate design for maximum durability and fully cast end tanks (imprinted with the CVF logo) to ensure maximum flow of air into the unit and out to your turbo - equaling more HP.

APPLICATION AND INSTALLATION

The active grille shutters (AGS) have to be removed for installation. There is no check engine light associated with removal of the AGS and they can be placed back on the vehicle if the intercooler is removed.

This part installs on the following vehicles:

• 2015–2025 Ford F-150 2.7L/3.5L/Raptor engines

• 2021–2025 Ford F-150 PowerBoost 3.5L

• 2018–2025 Ford Expedition

• 2018–2025 Lincoln Navigator
