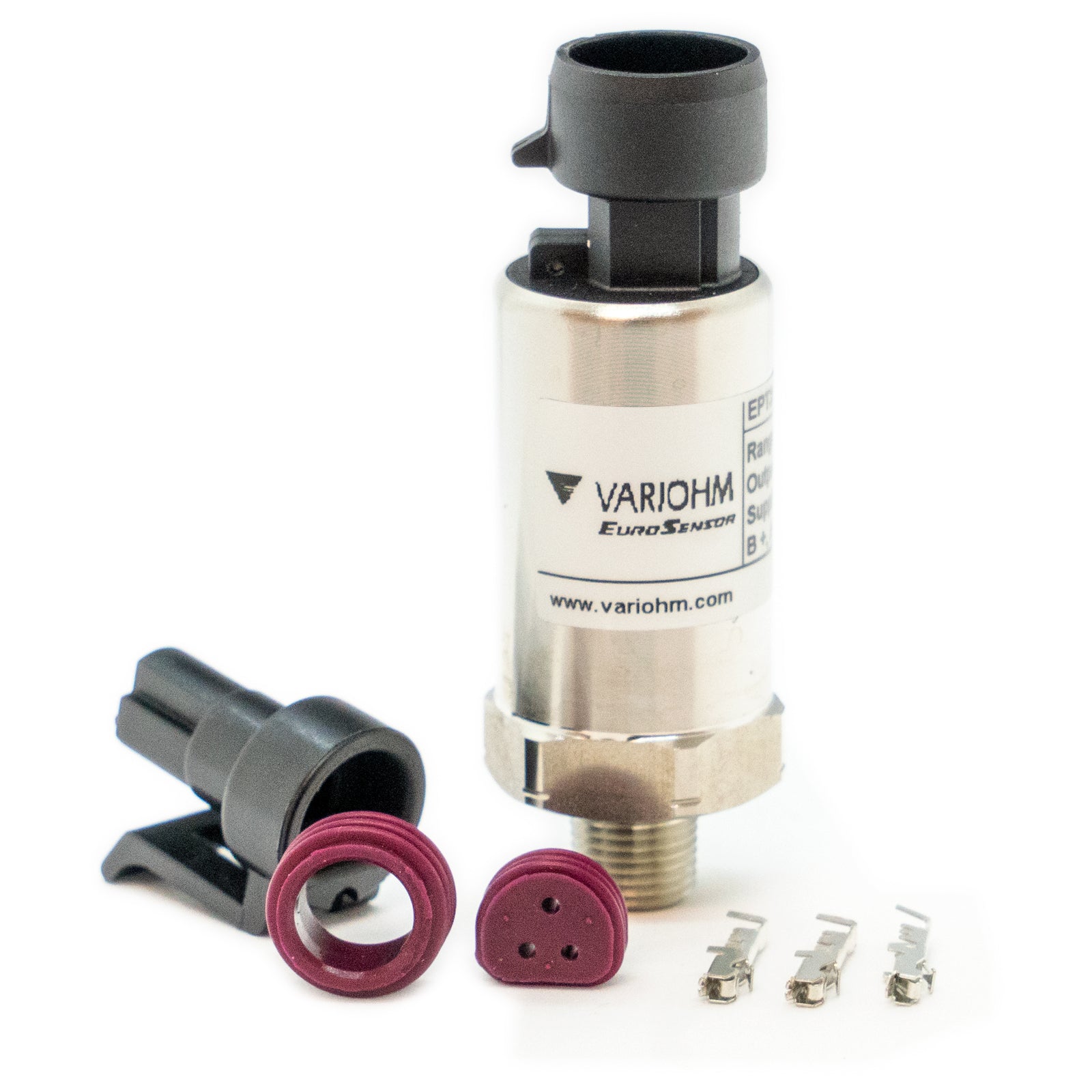

8 Bar MAP Sensor EU (MAP8EU)

The 8 Bar MAP Variohm Eurosensor reads up to 7 Bar absolute pressure. This means that it is suitable for turbo or supercharged applications running up to 7 Bar (or 101psi) of boost pressure. Includes Plug and Pins Push wire through connector; crimp on terminal; pull wire/terminal back into connector Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Variohm 8 Bar’ Calibration - 0kpa = 0.5v, 800kpa = 4.5v PIN A = 0v PIN B = 5v PIN C = Signal
