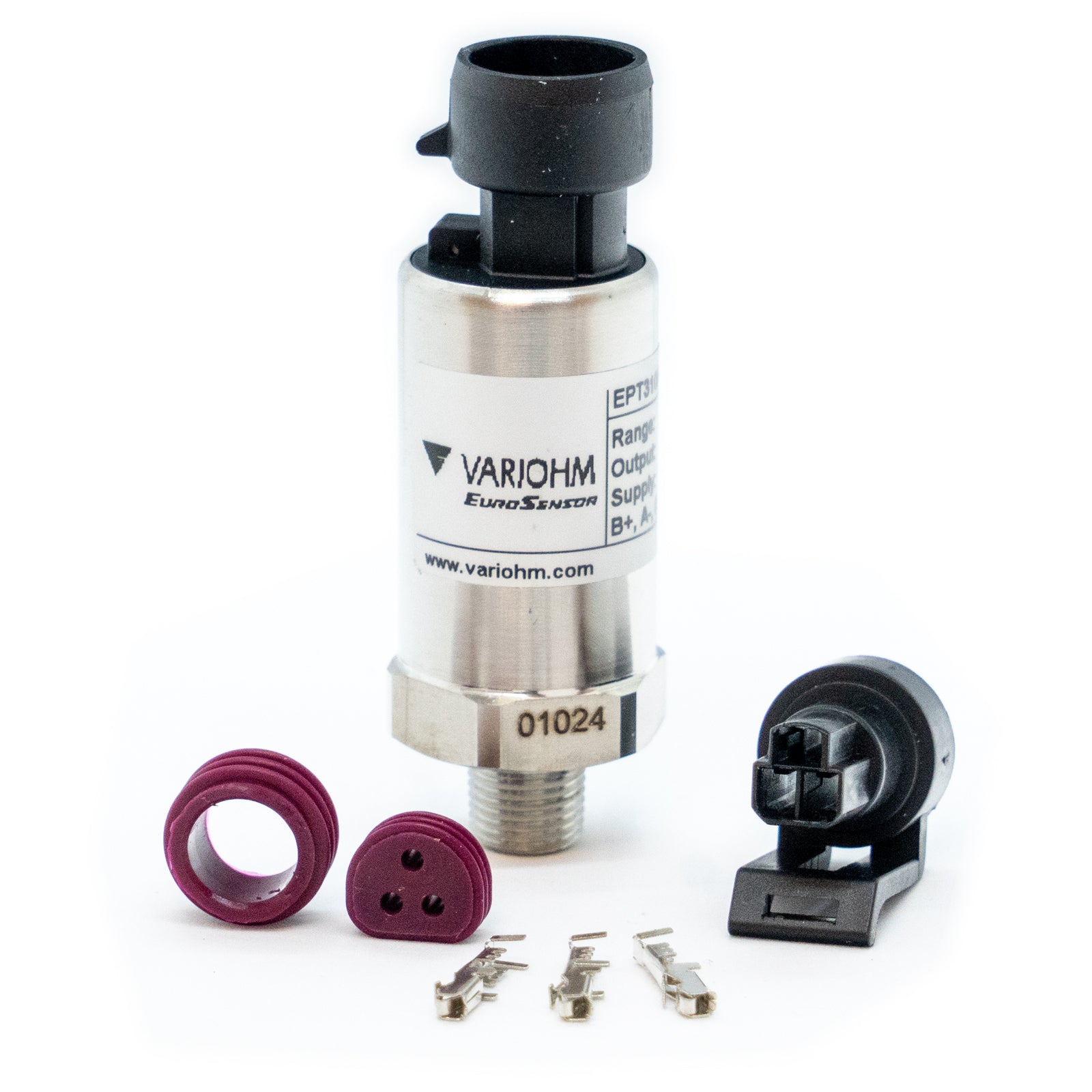

5 Bar MAP Sensor EU (MAP5EU)

_x000D_ The 5 Bar MAP Variohm Eurosensor reads up to 4 Bar absolute pressure. _x000D_ _x000D_ _x000D_ This means that it is suitable for turbo or supercharged applications running up to 4 Bar (or 58psi) of boost pressure. _x000D_ _x000D_ _x000D_ Includes Plug and Pins _x000D_ Push wire through connector; crimp on terminal; pull wire/terminal back into connector _x000D_ Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Variohm 5 Bar’ _x000D_ _x000D_ _x000D_ Calibration - 0kpa = 0.5v, 500kpa = 4.5v _x000D_ PIN A = 0v _x000D_ PIN B = 5v _x000D_ PIN C = Signal _x000D_
