MAPerformance Beehive Valve Spring Kit w/ Titanium Retainers | 2003-2006 Mitsubishi Evo 8/9 (EVO-BSK-HP)
MAPerformance Beehive Valve Spring Kit w/ Titanium Retainers | 2003-2006 Mitsubishi Evo 8/9 (EVO-BSK-HP)
We try our best to have as many of our products readily available, if you want to double check stock or lead times, please give us a call at 801-769-6929 or reach out to one of our sales reps!
Couldn't load pickup availability
Evo 8/9 Beehive Valve Springs by MAPerformance
MAP beehive valve springs are engineered to exacting tolerances utilizing only the finest materials by an ISO certified valve spring manufacturer. Designed with performance in mind these valve springs are ideal for camshafts that feature more aggressive lift and duration profiles. This kit promotes valvetrain stability with even the largest of camshafts and reduces valvetrain mass for the ultimate in high RPM performance!
Can I use these with my DSM? Yes, these will work with Evo 7/8/9 and 1G and 2G DSM's as long as you use the included springs AND retainers!
Why Beehive?

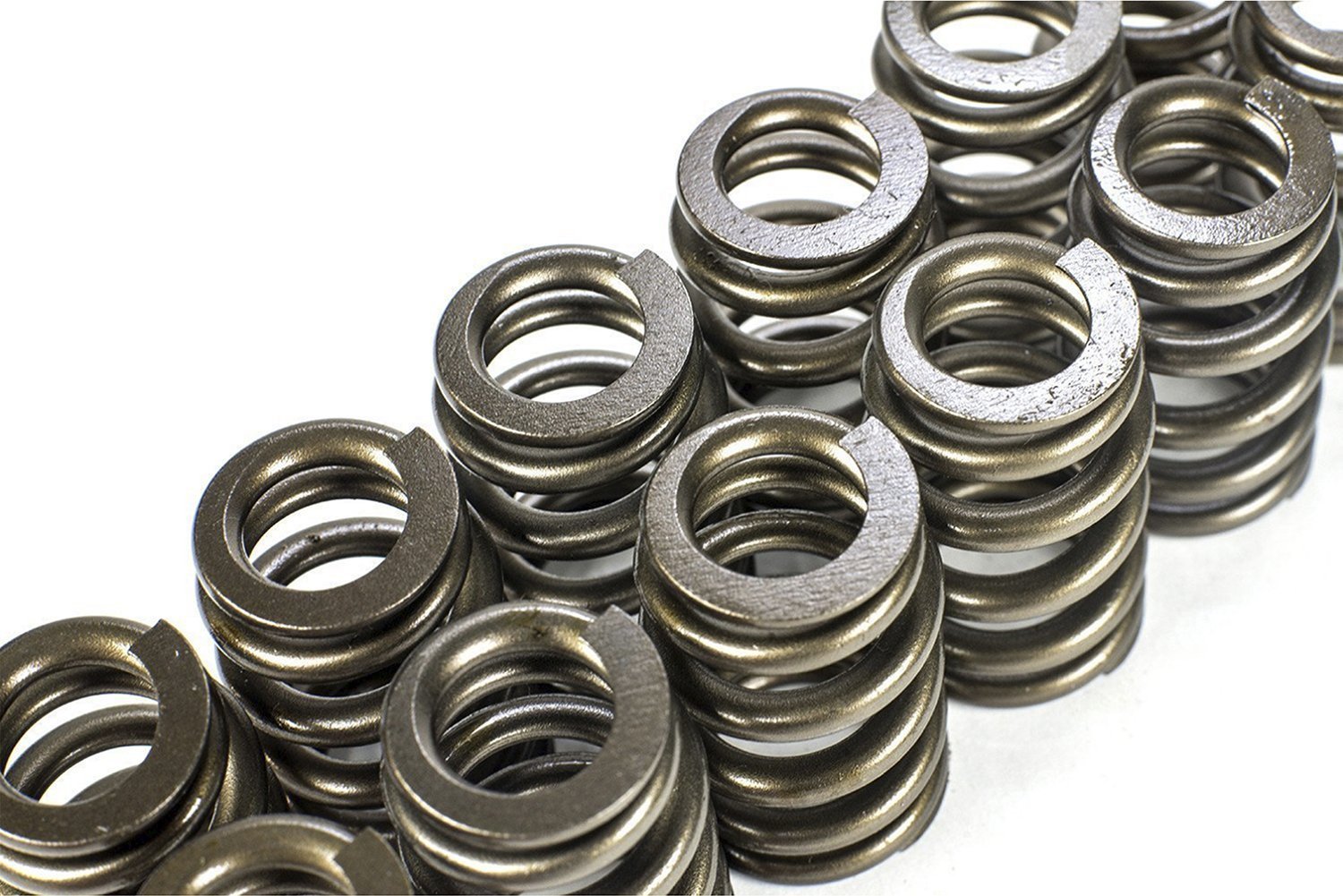

MAP beehive valve springs utilize ovate shaped wire that more effectively distributes stress over the entire wire area in comparison to a typical round wire spring. The thinner cross-section wire also allows for more coil bind clearance to accommodate higher lift camshafts. Retainer end mass is reduced allowing for improved performance in high RPM applications and coil surging is dramatically reduced providing improved valve control and fatigue life of the spring itself.
Features
- Ultimate Duty Series Seat @ 1.50" = 85lbs
@ .473" = 202lbs - Max Recommended Lift: 12mm
Applications
- 1990-1999 1G / 2G DSM
- 2001-2006 Mitsubishi Evo 7/8/9

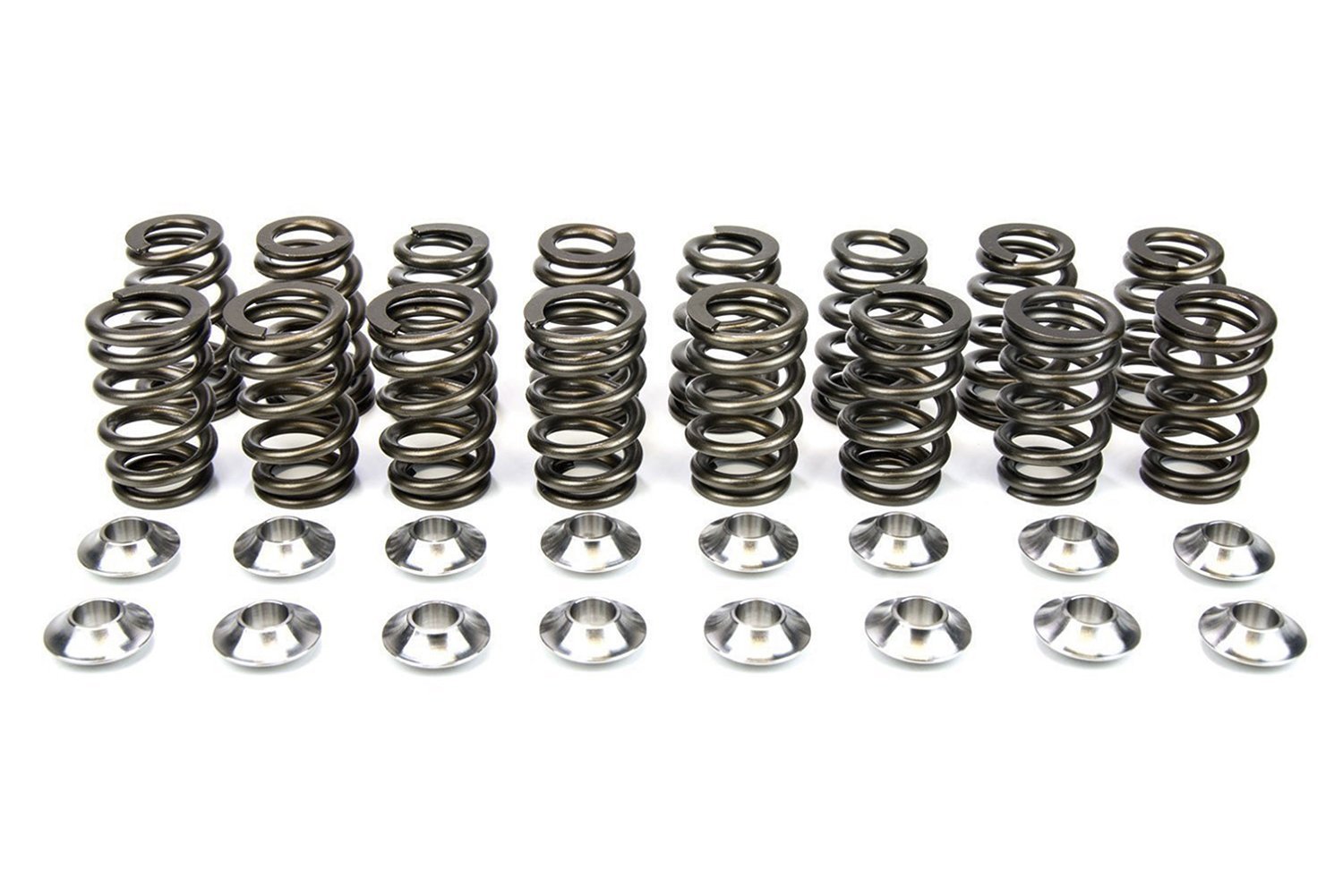

What's In The Box?

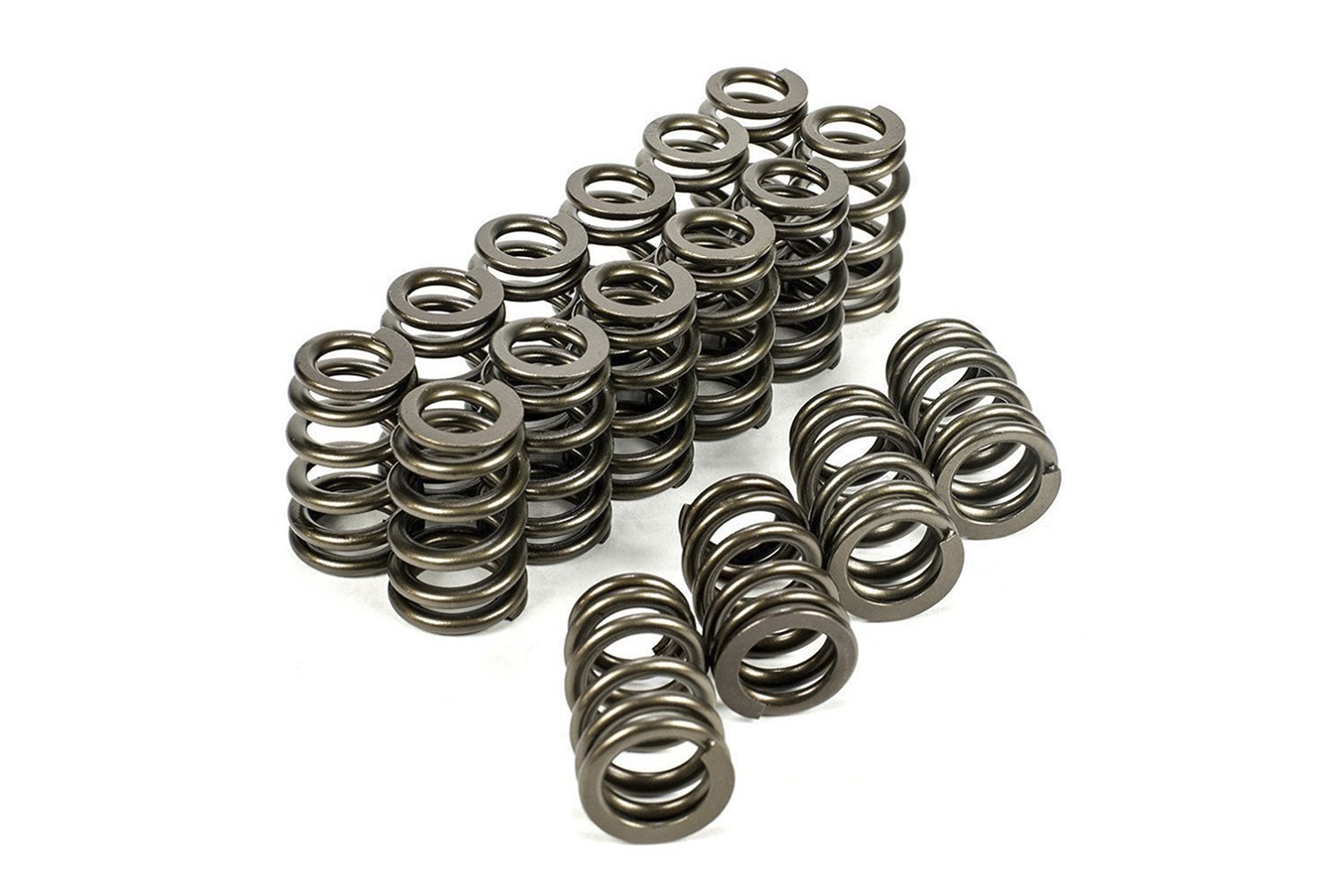

- (16) Valve Springs
- (16) Titanium Retainers
Warranty
- Manufacturer Standard Warranty
