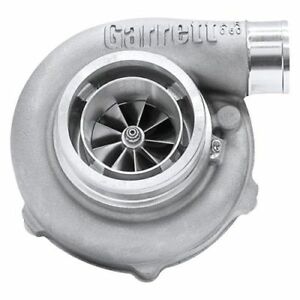

Garrett GTX3076R Gen II Super Core
Garrett GTX3076R Gen II Super Core
We try our best to have as many of our products readily available, if you want to double check stock or lead times, please give us a call at 801-769-6929 or reach out to one of our sales reps!
Couldn't load pickup availability
Forged, fully machined compressor wheel
400-750hp capability
Displacement range: 1.8L to 3.0L
CHRA Specs
-Dual Ball Bearing
-Oil and water-cooled bearing housing
-M14x1.5 water ports
Compressor Specs
-Anti surge 0.60 A/R ported shroud compressor housing 4" inlet 2" outlet
-58-trim billet compressor wheel 2.28/3.01, 58.0mm inducer
Turbine Specs
-Available as a super core (no turbine housing)
-Also Available with T31, GT, and v-band T3, and v-band T4 turbine housings in 0.63 A/R and 0.82 A/R and 1.06 A/R
-60.0mm 84-trim GT30 turbine wheel
Part Numbers:
851154-5001S - Sold without turbine housing. Includes CHRA and compressor housing
Turbine housing kits are also available
