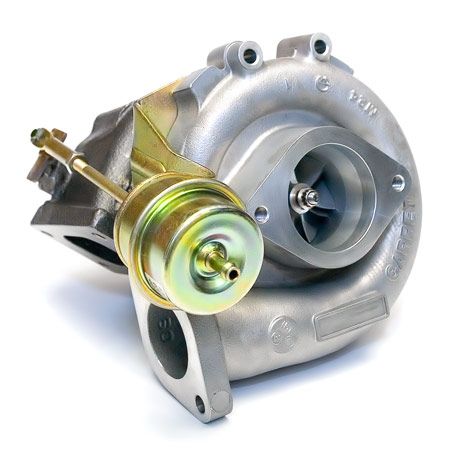

Garrett GT2860R GTR Ball Bearing Turbo 0.64 A/R

Garrett GT2860R GTR Ball Bearing Turbo 0.64 A/R

Regular price $1,228.00
Regular price Sale price $1,228.00
Sale Sold out
  Lease to own   Pay as low as   $/week

We try our best to have as many of our products readily available, if you want to double check stock or lead times, please give us a call at 801-769-6929 or reach out to one of our sales reps!

Garrett produces over over 30,000 turbos EVERY DAY, and also make a number of turbo accessories. Garrett continues to redefine the art and science of boosting technology with advanced air management systems for the full spectrum of modern engines. You know the Garrett name is one you can trust.

  • Approx Horsepower Range for Engine Capacity: 250-320Hp (1.6L-2.5L)
  • CHRA (core): 835998-5003S
  • Compressor Housing Air Ratio: 0.42
  • Compressor Wheel Inducer Size (mm): 44.59
  • Compressor Wheel Trim (mm): 55
  • Turbine Wheel Exducer Size (mm): 42.40
  • Turbine Wheel Trim (mm): 62
  • Turbine Housing & Air Ratio Size: 0.64
  • Turbine Housing Inlet Port: Single
  • Integral Wastegate: YES
  • Actuator Pressure (psi/kpa): 13.93 / 96.00
  • Water Cooled Centre Housing: YES
  • Ball Bearing: YES
