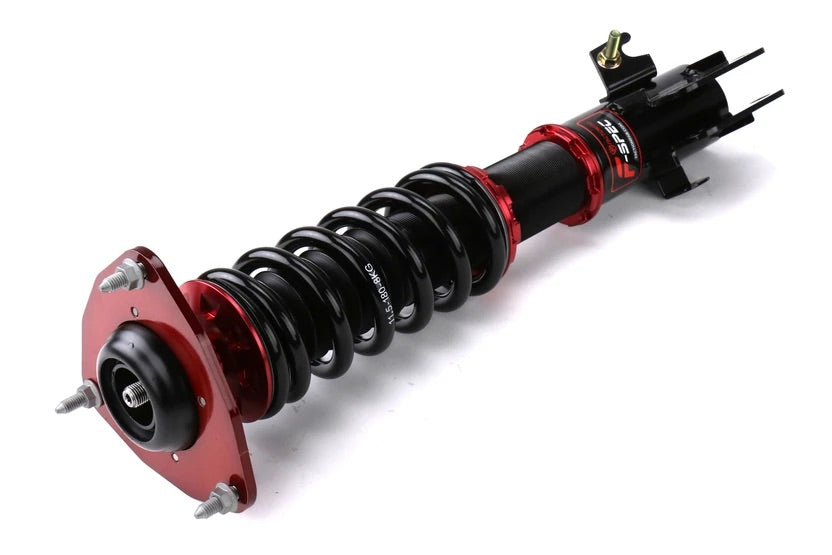

Faction Fab FFA1.10173.2 FR-Spec Coilovers (WRX 02-07/2004 STi)

Faction Fab FFA1.10173.2 FR-Spec Coilovers (WRX 02-07/2004 STi)

Regular price $845.00
Regular price Sale price $845.00
Sale Sold out

These are ideal for those of you looking to achieve that aggressive lowered look while improving the handling and steering response of your vehicle. These have been engineered using the right spring rates so that you can have an efficient suspension package without compromising the overall ride quality.

Difference between F-Spec and FR-Spec:

  • More aggressive shock valve
  • Fluid viscosity
  • 5W for F-Spec
  • 20W for FR-Spec
  • Shim stack
  • Stiffer spring rates
  • Pillowball aluminum front top-hats
  • 32-way adjustable monotube shock with internal piston and damping stack tuned for aggressive driving.
  • High Temperature/ higher stability shock fluid to better suit circuit driving.
  • Adjustable Aluminum upper pillow ball mounts to reduce suspension deflection under aggressive driving conditions while allowing for fine alignment adjustments.

GENERAL:

  • Japanese steel tube construction using SAE1010 STKM13c
  • Monotube shock design with high-performance mono-tube shock construction allowing for better rider control, fluid life, and thermal fluid stability
  • Synthetic high-performance oil
  • Independent ride-height adjustability separately from spring pre-load allowing the customer to set the ride height without having to worry about shock travel
  • Top hats included allowing this suspension system to be a direct replacement for your factory suspension setup
  • Forged 6061 anodized adjustable collars and spring seats for easy adjustment and prolonged cycle life
  • Robotic welded and electroplated lower shock mounts for consistent fit and finish
  • Dust boots and bump stops for shock protection and longevity
  • Individually sold components allowing for replacement or upgrade of components as desired or needed
  • Plastic lower spring seat isolator to aid ride height adjustment and reduce unwanted audible noise
