CSF A90/A91 GR Supra Competition-Spec Four-Piece Cooling Package

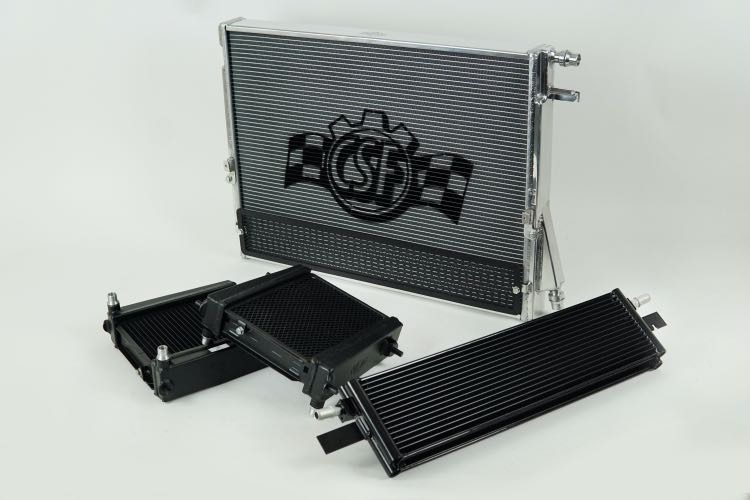

Four Piece Competition-Spec Cooling Package

• High-Performance Front Mount Heat Exchanger + Two Auxiliary Radiators + DCT Cooler
• Package Price $1,749 (Original MSRP for all four components purchased separately $1,956 USD)

High-Performance Auxiliary Radiator (CSF #8179)

• 2-Row, 42mm Ultra High Performance Core
• 6.5mm Tall Multi-Louvered Fin with CSF’s Exclusive B-Tube Technology
• CNC Machined Mounting Brackets and OEM Style “Quick Connect” Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Includes Detachable Aluminum Rock Guard (Industry Exclusive)
• Finished in a Thermal Black Protective Coating
• Fits Both Left & Right Side of Vehicle
• 2-Year Limited Warranty
• Drop-in Fit Requires No Modifications to Install
• Tested and Proven by CSF’s Global Network of R&D Partners, Including Leading Time Attack Teams, Tuners, and Turbo Kit Manufacturers

Dual-Core DCT Transmission Oil Cooler (CSF #8183)

• Innovative Dual-Core Design (Industry Exclusive) vs. OEM Single Core
• 240% Increase in Core Volume
• 130% Increase in Fluid Capacity Compared to OEM (CSF 550ml vs. OEM ~240ml)
• Two 16mm Stacked Cores = 32mm Core Width (44mm Overall Width) vs. OEM 15mm Core Width
• Rear Cooler: 15 Rows vs. OEM 12 Rows
• Front Cooler: Additional 12 Rows
• 5.4mm Tall Multi-Louvered Fin vs. OEM 7mm
• Made with CSF’s AC Condenser Technology Using a 1-Row Super-High Pressure 16mm 9-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
• 129mm Overall Height vs. OEM 125mm Allows for Maximum Performance Without Increasing Overall Surface Area or Blocking Airflow to Rest of Cooling System
• Utilizes OEM Top/Bottom Rubber Seals for Optimal Airflow
• OEM Style “Quick Connect” Inlet/Outlet Connections
• Drop-in Fit Requires No Modifications to Install
• Can be Installed With CSF’s High-Performance Heat Exchanger (CSF #8154) or with the OEM Cooling System
• 2-Year Limited Warranty
• Ideal for Road Racing, Drag Racing, and Vehicles With Increased Performance and/or Transmission Tuning

High-Performance Heat Exchanger (CSF #8154)

• Significantly Reduces Intake Air Temperature (IAT) for Maximum Performance (with Faster Heat Soak Recovery)
• Improves Air Flow to the Rest of the Cooling System for Both Lower Engine Water and Engine Oil Temperatures
• 2-Row, 42mm Ultra High Performance Core
• 6.5mm Tall Multi-Louvered Fin with CSF’s Exclusive B-Tube Technology
• CNC Machined Mounting Brackets and OEM Style “Quick Connect” Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Includes Rock Guard & Transmission Oil Cooler Mounting Kit (Industry Exclusive)
• “Drop-in” Fit
