GARRETT G42-1200 TURBO ASSEMBLY KIT O/V V-BAND / V-BAND 1.15 A/R

GARRETT G42-1200 TURBO ASSEMBLY KIT O/V V-BAND / V-BAND 1.15 A/R

$2,900.00
$3,326.89 $2,900.00
Sale Sold out

We try our best to have as many of our products readily available, if you want to double check stock or lead times, please give us a call at 801-769-6929 or reach out to one of our sales reps!

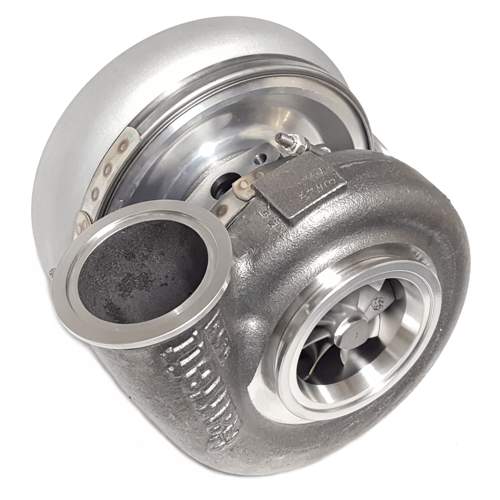

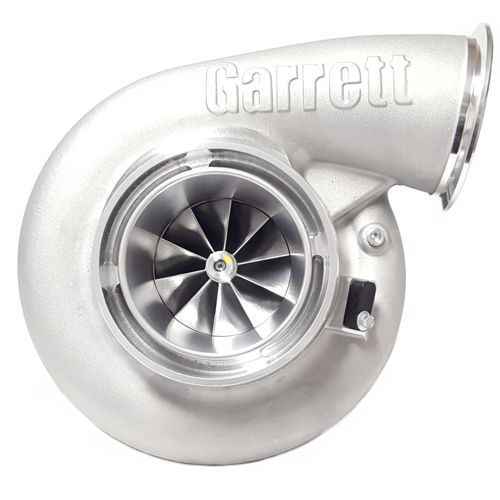

      Garrett® G42-1200 turbo assembly kit with 1.15 A/R v-band inlet/outlet turbine housing. Capable of 1200HP!

Product Features:
  • Quick spooling, high horsepower solution for 2.0 liter up to 7.0 liter engine platforms
  • Ten blade, forged, fully-machined G Series compressor wheel with high flowing aero
  • Low inertia compressor wheel resulting in faster boost response
  • New turbine aero wheel flows 10% more and has peak efficiency of 77% (Compared to GTX42 at 74% with 1.01A/R)
  • Engineered with inconel super alloy to withstand operating temperatures up to 950C
Product Specifications:
  • Compressor Wheel Inducer: 73mm
  • Compressor Wheel Exducer: 91mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.85
  • Turbine Wheel Inducer: 82mm
  • Turbine Wheel Exducer: 75mm
  • Turbine Wheel Trim: 84
